Introduction

Replacing windshield wipers can be difficult if you don't know how to do it correctly. However, with the instructions, it's not a hard repair. This guide will show you how to replace the windshield wipers of your 2008-Present Dodge Challenger so you don't have to pay a mechanic do it for you. This repair was demonstrated on a 2018 Dodge Challenger SXT Plus.

Failure to replace your windshield wipers can cause streaking and poor visibility in wet weather conditions. Use caution when replacing your windshield wipers, as too much pressure or incorrect installation can damage the wiper blade and/or windshield wiper arm.

Before you begin, make sure you car is off and in park to avoid accidents.

  1. ISTLSR1P6VWZ4aDb
    • Lift the windshield wiper arms up and away from the windshield into the upright position.

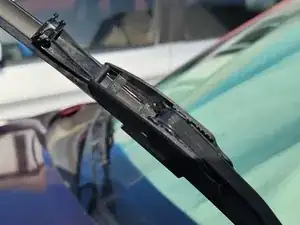

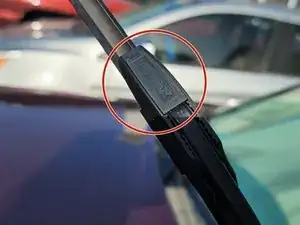

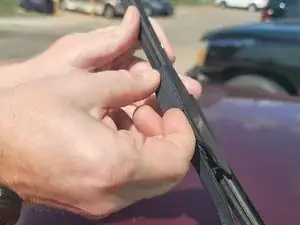

  2. G3JTGwKIPnHCtJZM
    G3JTGwKIPnHCtJZM
    XYiRcnIuxa4hG52r
    4mw2lJvYYEiVKCAL
    • Pull the tab in the middle of the windshield wiper arm to the left and into the open position.

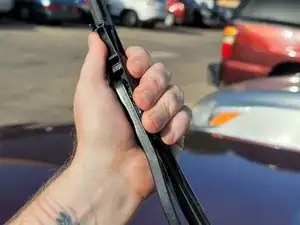

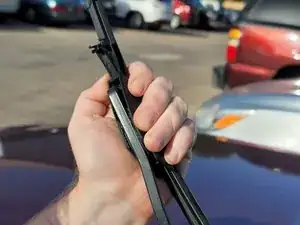

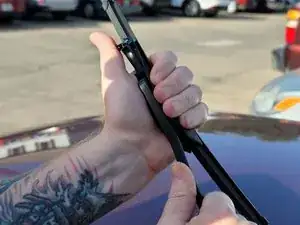

  3. WOJmMOvC6hhHWjxh
    WOJmMOvC6hhHWjxh
    hYIRLDkqiIo1pRdR
    cxcsBG4DwJY2HYCS
    • Place your hand on the windshield wiper and pull downwards until the wiper releases from the hook.

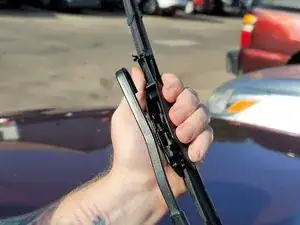

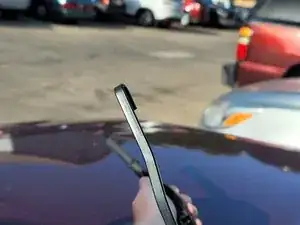

  4. iEk5mR6UXCG2vAZX
    iEk5mR6UXCG2vAZX
    1k2ytJfUrq2I5eNs
    • Pull away from the hook and remove the old windshield wiper.

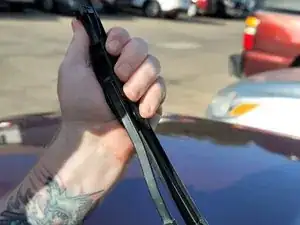

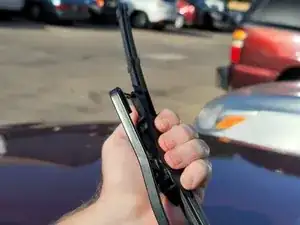

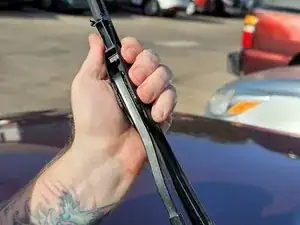

  5. RPsQotrm5lo34yiT
    RPsQotrm5lo34yiT
    WtUomdeWZdSfBkWS
    KAjwQFKL3RDYLQFE
    • Line up the hole on the new wiper blade and insert it on the exposed hook.

    • Pull upwards on the wiper blade until you hear it click into place.

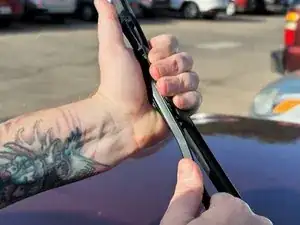

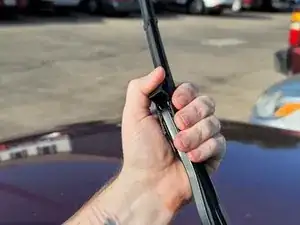

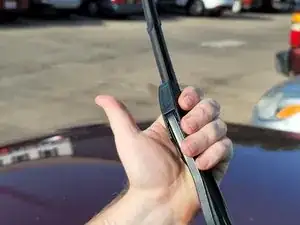

  6. DCX5VKjv3Zvjw3SC
    DCX5VKjv3Zvjw3SC
    SpRbYOrY3FhQBXQA
    rReBeKdfuaPK2udI
    • Push down on the tab in the middle of the wiper blade to secure it to the windshield wiper arm.

    • Repeat the process to replace the windshield wiper on the passenger side.

Conclusion

To reassemble your device, follow these instructions in reverse order.
