Introduction

This guide will help you replace the air filter on your 2011-2014 Dodge Challenger 3.6L V6.

It's important to change the engine air filter every 15K-30K miles under normal driving conditions and sooner if driving under extreme conditions. It's a good idea to change the engine air filter at each oil change. Don't forget to dispose of the old filter properly and record the replacement date.

Before you begin, make sure to turn off your car and put it in park to ensure a safe repair.

  1. AAJfCAE1bRLrLllQ
    AAJfCAE1bRLrLllQ
    hnrZpA3kasJlQNFb

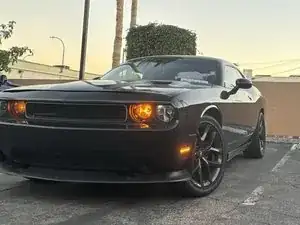

    • Before you begin, make sure your car is off and in park.

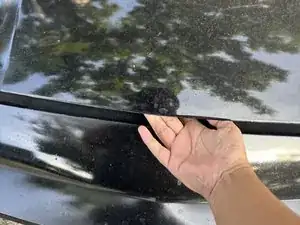

    • Pull the hood latch release under the steering wheel.

    • Open the engine hood.

  2. j6FQTMHgBIL5IjoB
    j6FQTMHgBIL5IjoB
    NRBVyPFLGY6sNReT
    GmDeoeTbTxD5GCwJ

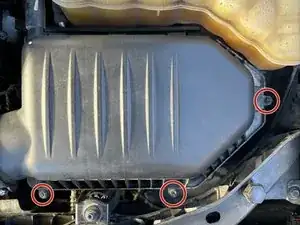

    • Locate the air intake in the lower right-hand side of the engine bay.

    • Use a flathead screwdriver to remove the three 12 mm screws securing the air intake cover.

  3. pYQVleFUKMtraAHu

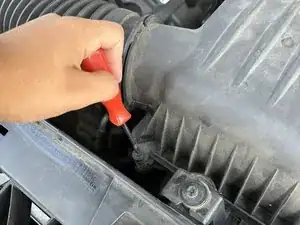

    • Use the flathead screwdriver to loosen the clamp securing the air intake.

    • Do not remove the clamp, just loosen it.

  4. ytnQpiwwcCoU1t1H

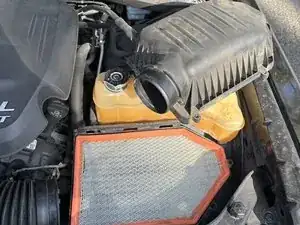

    • Remove the air intake cover.

    • Place the intake lid above the intake to avoid loosening the hose going to the intake.

  5. JEXll51ZFBNEZJAR
    JEXll51ZFBNEZJAR
    N5cgiMs4Tbufe4ST

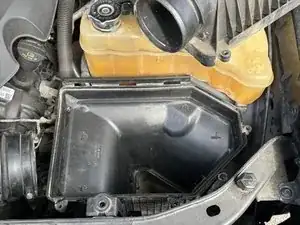

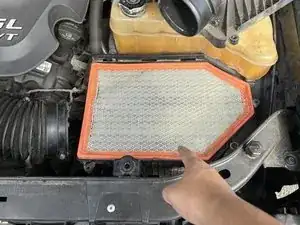

    • Remove the engine air filter.

Conclusion

To reassemble, follow these instructions in reverse order.
