Black and Decker JS660 Blade Holder Replacement

Written By: Andrew Khouri
  • Comments: 2
Black and Decker JS660 Blade Holder Replacement

Difficulty

Moderate

Steps

5

Time Required

1 hour

Introduction

The jigsaw blade may become loose or is not fastening correctly when using the blade. This guide will identify the problem and show the user how to fix and interchange the holder.

  1. poaf5emkBwBqUCpn
    poaf5emkBwBqUCpn
    VWAeK3xYclpFaipA

    • Unscrew the eight screws to open up the jigsaw.

  2. CqPt5QcBQRcR1nes

    • Use a screwdriver to remove the first screws securing the base to the jigsaw.

    • Remove the second screw.

    • Remove the base of the jigsaw.

  3. GPllxjLJPcyeaMYR
    GPllxjLJPcyeaMYR
    KROITyagFyRJDQbC

    • With the old jigsaw base off, replace it with the new base by following the steps in the reverse order.

    • Assemble the base on a steady surface.

  4. BSeNAC6PLKybYUNA
    BSeNAC6PLKybYUNA
    OLtArEqZITeHNOGW

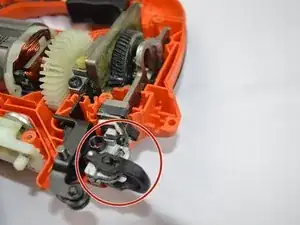

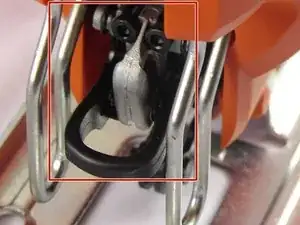

    • You will need to take out the entire blade clamp shown.

    • The plastic part is fragile, easy to break

  5. AkuCNcKnXCs34U2Q
    AkuCNcKnXCs34U2Q
    PW11KVHiXEwjTciy
    k1EIatGwC4NA6ntf

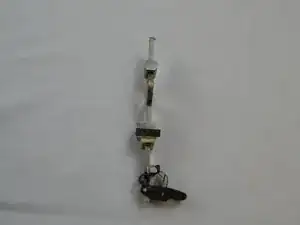

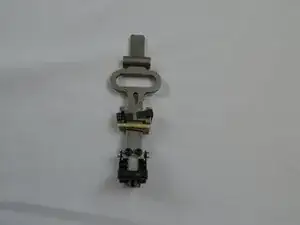

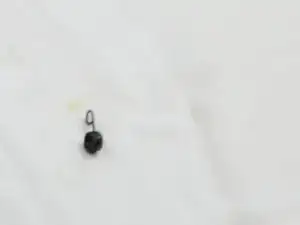

    • Showing the entire blade clamp removed from the device.

    • Apply some oil grease if dry/needed

Conclusion

To reassemble your device, follow these instructions in reverse order.
