Canon EOS Rebel T7i Front Cover Replacement

Written By: Zephosk
  • Comments: 0
Canon EOS Rebel T7i Front Cover Replacement

Difficulty

Moderate

Steps

6

Time Required

15 minutes

Introduction

This guide will show you how to replace the front cover of the camera. This is useful both if you're replacing the front cover, or needing to gain access to other components in the camera such as the top cover.

Note that the Phillips #000 screwdriver is marked as an optional tool as you can always use the JIS #000 screwdriver in its place (JIS screwdrivers won't damage Phillips head screws).

  1. xiNYvG5YHEZRcxZX
    xiNYvG5YHEZRcxZX
    vFjLJFrkHHwpxODo

    • Before beginning, remove the battery and SD card from the camera.

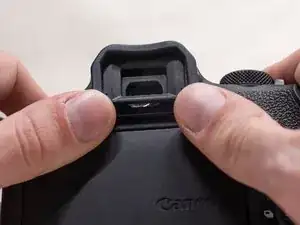

    • Using your thumbs, push up on the eyepiece to remove it.

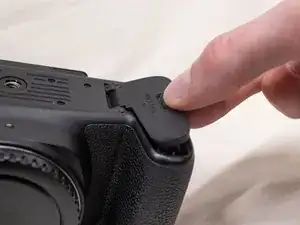

    • Remove the battery door.

    • Open the battery door to about a 35° angle.

    • Pull the battery door straight outwards.

  2. LliEmFfGsD53fno3
    LliEmFfGsD53fno3
    PsKDNhO3f1aFLPRa
    SqjpcTHkLihlaH1t

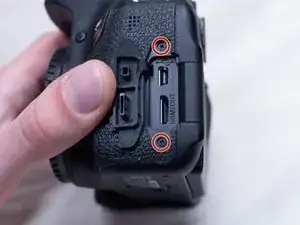

    • Underneath the right I/F terminal cap, remove the following screws:

    • Two M1.7x5.5mm JIS #000 screws

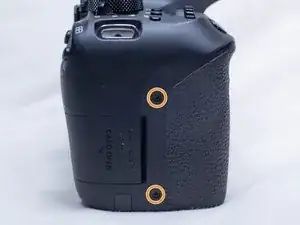

    • On the right side of the camera, remove the following screws:

    • Two M1.7x4.5mm JIS #000 screws

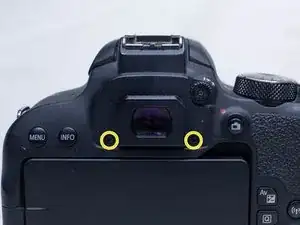

    • On the back of the camera, remove the following screws next to the viewfinder:

    • Two M1.7x5.0mm Phillips #000 screws

  3. dDRTJKLfgPjyjLSd
    dDRTJKLfgPjyjLSd
    H6CJF5VjgSUsE1mW
    5hNnoIdpSV3Y4fXQ

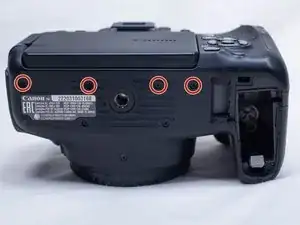

    • On the bottom of the camera, remove the following screws:

    • Four M1.7x5.0mm Phillips #000 screws

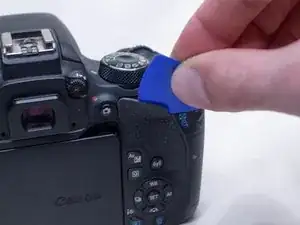

    • Using a plastic opening pick, partially peel up the top of the back rubber grip.

    • Carefully begin lifting the back cover up away from the camera body.

    • Do not lift it all the way off. There is still a ribbon cable attaching the back cover to the main PCB board.

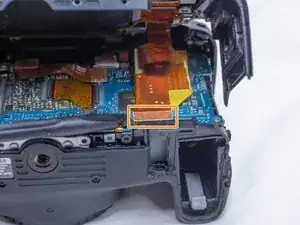

    • Using a plastic spudger tool, gently pry off the back cover ribbon cable from the main PCB board.

  4. Ko5ud5WslvSXyWHB
    Ko5ud5WslvSXyWHB
    tLnfCkFpn6iUZjX4
    qMhiRRXLKSHIVD4D

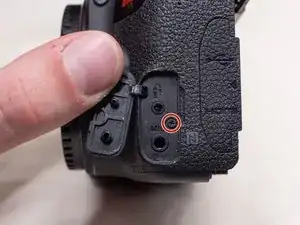

    • Underneath the left I/F terminal cap, remove the following screw:

    • M1.7x5.5mm JIS #000 screw

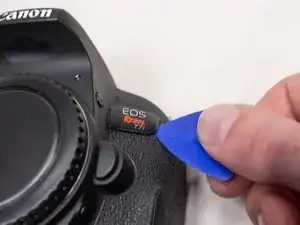

    • Using a plastic opening pick, peel off the front name plate.

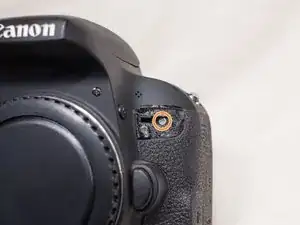

    • Underneath where the name plate was, remove the following screw:

    • One M1.7x5.5mm Phillips #000 screw

    • Pull off the I/F terminal cover.

  5. DVNuE5oDRBnDPBJt
    DVNuE5oDRBnDPBJt
    hG5TVuU1kW6tDYvX
    N14TqncAuvOlDwQT

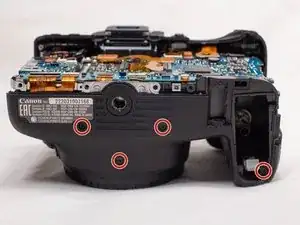

    • On the bottom of the camera, remove the following screws:

    • Four M1.7x5.0mm Phillips #000 screws

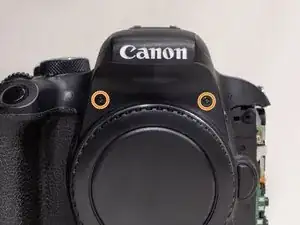

    • On the front of the camera, remove the following screws:

    • Two M1.7x6.0mm JIS #000 screws

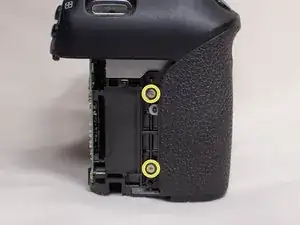

    • On the right side of the camera, remove the following screws:

    • Two M1.7x4.5mm JIS #000 screws

  6. 6jgycWc1tlaII6bk

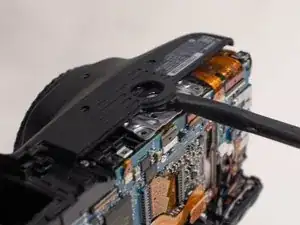

    • Use a plastic spudger to pry up on the bottom of the front cover and lift it over the tripod socket.

    • Pull the front cover off the camera body.

    • Electric Shock Warning: With the front cover off, the high voltage capacitor on the DC PCB board is now exposed. It is recommended that you use a capacitor discharge tool to ensure the capacitor is fully discharged before proceeding further.

Conclusion

To reassemble your device, follow these instructions in reverse order.
