Dell Inspiron 1420 Disassembly

Written By: Braxton Quillin
  • Comments: 1
Dell Inspiron 1420 Disassembly

Difficulty

Moderate

Steps

23

Time Required

45 minutes - 1 hour

Introduction

This guide shows how to fully extract the Dell Inspiron 1420 Motherboard.

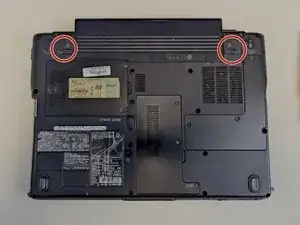

  1. aRVULJM3XFCcuV6U
    aRVULJM3XFCcuV6U
    VrOjhXSKQMM241kS

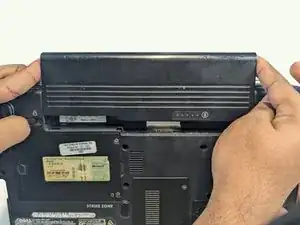

    • Press both indicated locks on the bottom side of the laptop to release and remove the battery.

  2. pNAbckuFfGMfuOO6
    pNAbckuFfGMfuOO6
    rwbIaJ3v6vw4dXct

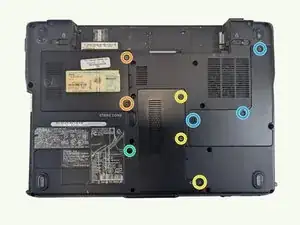

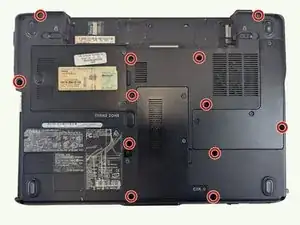

    • Loosen and remove indicated screws on the back panel using a Phillips #1 screwdriver.

    • Back cover screws

    • These screws are a different length than the others and can be stored separately for reassembly.

    • Hard drive cover screws

    • RAM cover screws

    • CD drive cover screw

    • Heat sink cover screws

  3. StQYYQyWwwh4XQRH

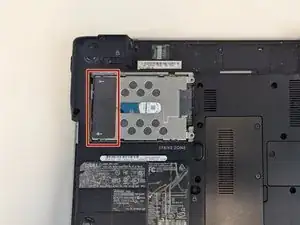

    • Remove the hard drive cover.

    • Pull the tab in the direction of the arrows to remove the hard drive.

  4. uZQVIwjOo1Dv2kRP
    uZQVIwjOo1Dv2kRP
    poPfnyFYRdFbZWWb

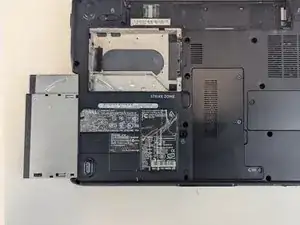

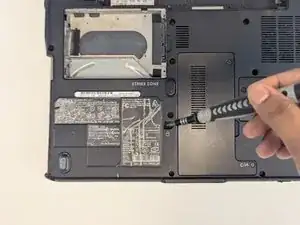

    • Using a screwdriver, slide out the CD drive bracket enough for it to be grabbed.

    • Remove CD drive from housing.

  5. UkF261SmVnVbqg5W
    UkF261SmVnVbqg5W
    CoR4ddc2P4tTmdWh

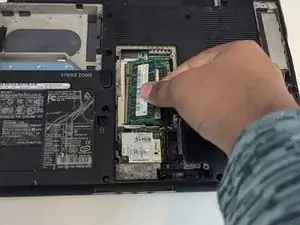

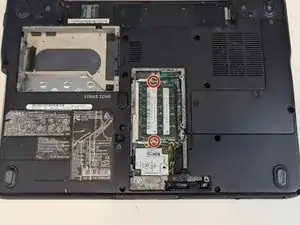

    • Remove RAM cover.

    • Pull the metal tabs above and below the RAM outward and remove both RAM sticks.

  6. JjMU3gOpuHFGEDSQ
    JjMU3gOpuHFGEDSQ
    YUMvPMvIkHiJeMMR
    3dphu1icxmCQsim3

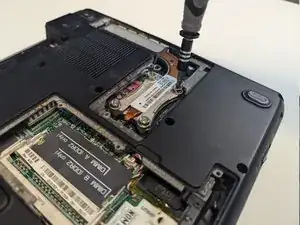

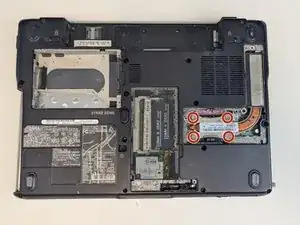

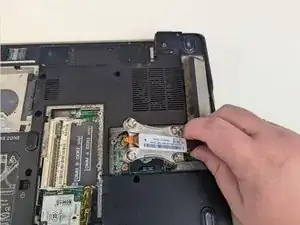

    • Remove the heat sink cover.

    • Using a Phillips #1 screwdriver, loosen and remove screws from heat sink.

    • Remove the heat sink.

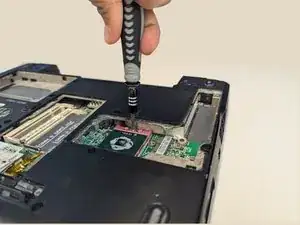

  7. XnbpSODXUk6t1E3c
    XnbpSODXUk6t1E3c
    pBmqMaLuBqwmFbjw
    BfEvEwquasrX4oQX

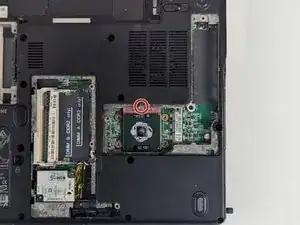

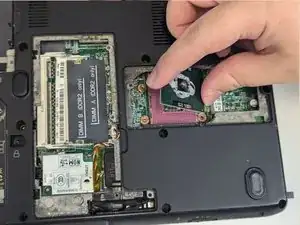

    • Using a flathead screwdriver, quarter turn the screw anticlockwise to release the CPU.

    • Gently lift the CPU out of the housing.

    • The pins on the bottom of the CPU are very fragile and will not function if any are bent.

  8. WeYUXl1DZEaIjNYm
    WeYUXl1DZEaIjNYm
    WSBcQ1IiuV66TSG3

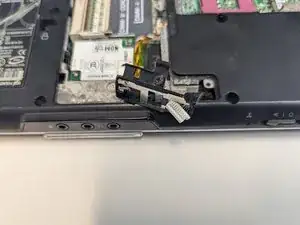

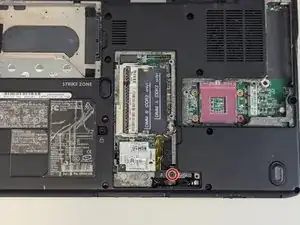

    • Using a Phillips #1 screwdriver, unscrew and remove bracket.

    • There may be a card along with the bracket in your machine. If there is, unplug and remove this card as well.

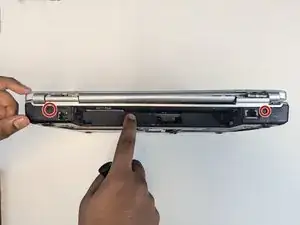

  9. eOmMseohAwE3hlKZ

    • Using a Phillips #1 screwdriver, loosen and remove the indicated screws.

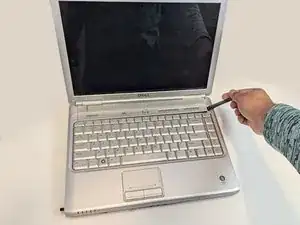

  10. IQaVD5EW6fXVfgeO

    • Use a spudger to pry off the control panel.

  11. f3IGLAqFJBNEXqjs

    • Use a spudger to pry off the hinge covers.

  12. OF6lVKg3TjLBSfgN

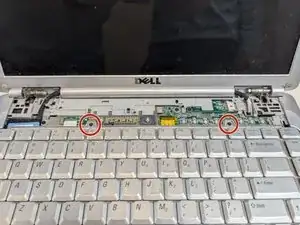

    • Using a Phillips #1 screwdriver, loosen and remove the keyboard screws.

  13. NMXZhiRvRXOfonfR
    NMXZhiRvRXOfonfR
    QnVSKZsrwUgndF1K

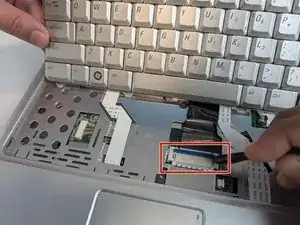

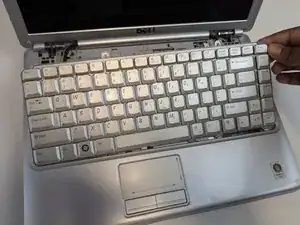

    • Gently lift keyboard to reveal blue ribbon connection.

    • Use a spudger to flip the blue ribbon lever and release the keyboard.

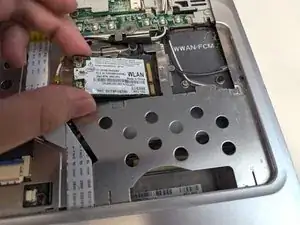

  14. iLKx1EQYqOpmlPSm
    iLKx1EQYqOpmlPSm
    VBCAItDDnGNpaUJD

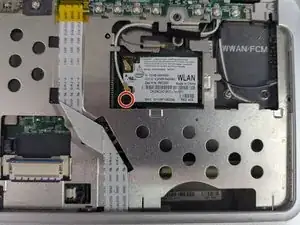

    • Using a Phillips #1 screwdriver, remove the screw holding in the Wi-Fi card.

    • Unplug cables connected to Wi-Fi card.

    • Slide Wi-Fi card out of connection to remove.

  15. gZQJxbyrCCBiiQpy
    gZQJxbyrCCBiiQpy
    D61JWLtavV6rBPsq

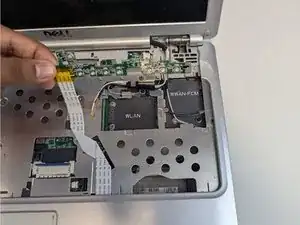

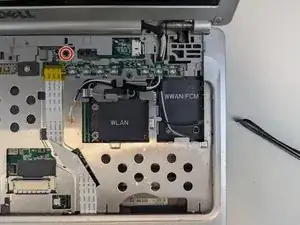

    • Using a Phillips #1 screwdriver, loosen and remove control panel screw.

    • Carefully pull up control panel. Being sure to keep the cable attached, set to the side.

  16. 3auc3gihUoTQFgcG
    3auc3gihUoTQFgcG
    HdrLaLoZvbFNuQcp

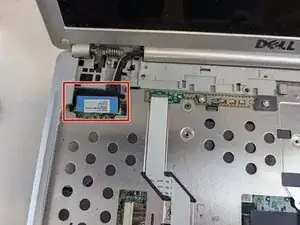

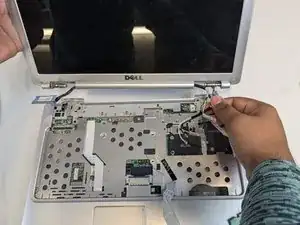

    • Pull the blue tab up to release the monitor.

    • Remove monitor.

  17. cefA2GxPcGatEWfQ

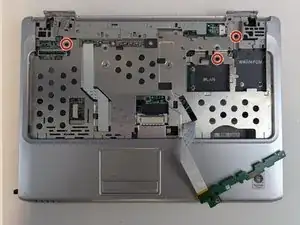

    • Using a Phillips #1 screwdriver, remove remaining screws from cover panel.

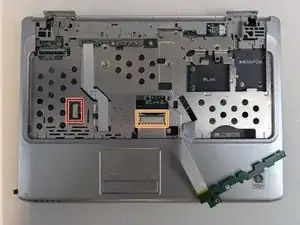

  18. WgdmN3HB16NacmNm
    WgdmN3HB16NacmNm
    kf6byadVwGePTq6g
    DcHatdyJreSeSjPT

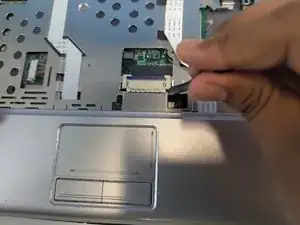

    • Using a spudger, disconnect control panel motherboard cable.

    • Using a spudger, flip up blue lever and disconnect touchpad cable.

  19. XXAYRtZmRKPwSoYh

    • Lift off cover panel.

    • Using a Phillips #1 screwdriver, loosen and remove screws from motherboard.

    • Disconnect the indicated cables from the motherboard.

    Can't lift off the cover

    Mjhvmjvhkjgyvjy -

  20. IUGLGpdCEkJKDE6Q

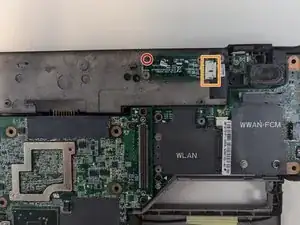

    • Using a Phillips #1 screwdriver, remove screw.

    • Disconnect indicated cable and remove SIM board.

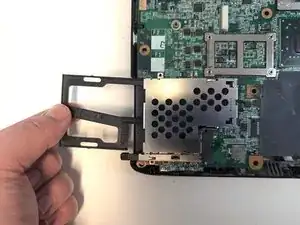

  21. UvqADlNcjk6h1c6o

    • Slide memory card holder out of housing.

  22. rcTUTumVOTeIupmE

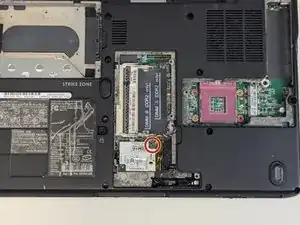

    • Flip laptop over to show backplate.

    • Loosen and remove modem card screw using a Phillips #1 screwdriver.

    • Remove modem card.

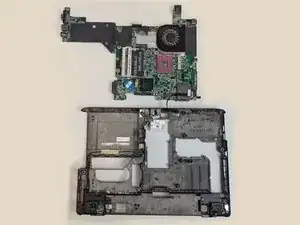

  23. ZSFKrfcaGPLeYJKt
    ZSFKrfcaGPLeYJKt
    FyWClTvPboFPFtCd

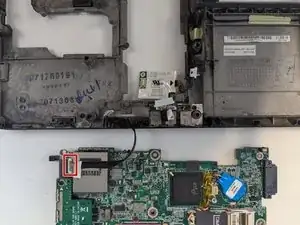

    • Flip laptop over and gently pull motherboard away from backplate.

    • Disconnect the indicated connection to release the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
