DualSense Edge L1 and R1 Buttons Replacement

Written By: Spencer Pennington
  • Comments: 1
DualSense Edge L1 and R1 Buttons Replacement

Difficulty

Easy

Steps

1

Time Required

1 minute

Introduction

Follow this guide to replace the L1 and R1 buttons in your Sony DualSense Edge controller.

  1. dnD3IFWgKJJfSguV
    dnD3IFWgKJJfSguV
    JvVFOShKriUDnYMV
    j5f43vV2VpX5jSDA

    • The L1 and R1 buttons are held in by two clips. If only one clip releases, move your spudger to the other side of the button to release the remaining clip. Don't continue prying on one side after a clip is released, or you risk breaking the other clip.

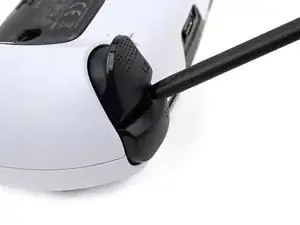

    • Insert the flat end of a spudger in the gap between the L1 and L2 buttons.

    • The buttons tend to shoot out in the next step. You can place your thumb over the button to prevent this.

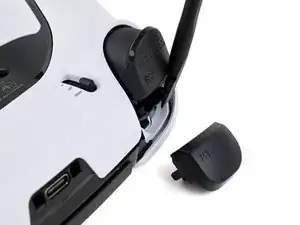

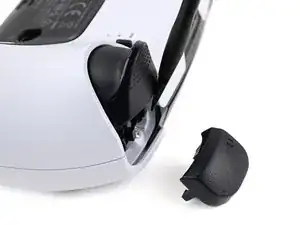

    • Use the spudger to pry out and remove the L1 button.

    • Repeat this process to remove the R1 button.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
