HP EliteBook 850 G7 Battery Replacement

Written By: Caleb Pierce
  • Comments: 0
HP EliteBook 850 G7 Battery Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

  1. G2IOQAKZKGh2JXOA
    G2IOQAKZKGh2JXOA
    MbBbgPiSLg6KljOo

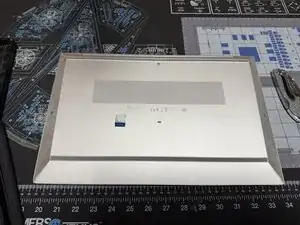

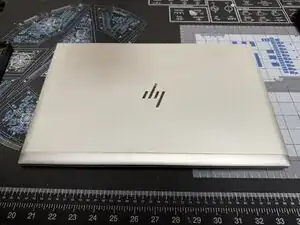

    • To start flip the device so the bottom is facing up

  2. QohVkNCLeXbG5NI4
    QohVkNCLeXbG5NI4
    GYDWXrD5akiXLbtS

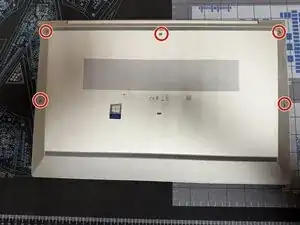

    • Unscrew the 5 marked captive screws with a Phillips #1 and flip the device so the hinge is faced towards you

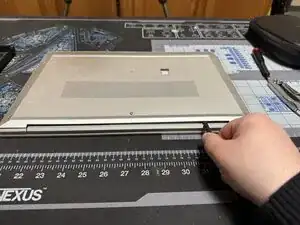

    • Slide a spudger under the shell to pop the clips and run it around the perimeter of the shell until you can remove it.

  3. xEafLynvYutP3B1w
    xEafLynvYutP3B1w
    Jo1TXFqgbbTISjUt

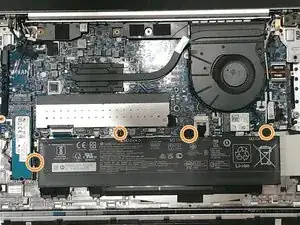

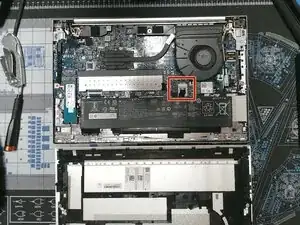

    • Unplug the battery cable

    • Then remove the 4 marked screws.

  4. The battery can now be removed

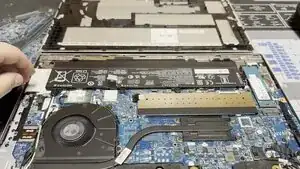

    • The battery can now be removed

    • For reassembly just follow the directions in reverse

Conclusion

To reassemble your device, follow these instructions in reverse order.
