Kodak EasyShare M532 Screen Replacement

Written By: Samantha Vasquez
  • Comments: 1
Kodak EasyShare M532 Screen Replacement

Difficulty

Moderate

Steps

10

Time Required

No estimate

Introduction

This guide is a quick and easy way to replace your Kodak M532 screen.

  1. eCetO6YpCiZiIiYh
    eCetO6YpCiZiIiYh
    JCUix62bRQhTYUpg

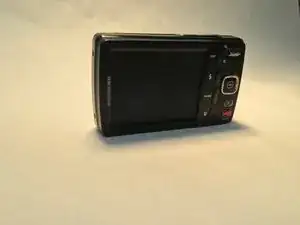

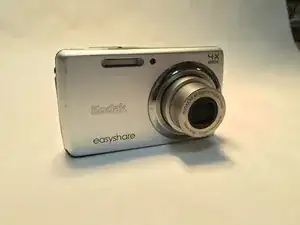

    • Open the battery compartment on the bottom of the camera and remove the battery.

  2. LTNaDCSOByOJcOaK
    LTNaDCSOByOJcOaK
    QKQ1Mf5JmMdLy5BU
    ISUFrHkZKXMFLgjt

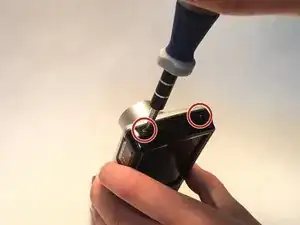

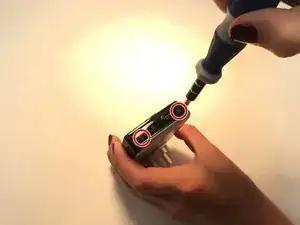

    • Remove two Phillips screws from each side of the camera (four screws total).

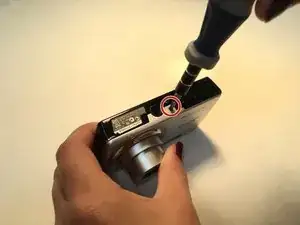

    • Remove one additional Phillips screw from the bottom of the camera.

  3. MSRWiYKDU5F1GJjH
    MSRWiYKDU5F1GJjH
    6ZKr6Uhhvi1koXTs

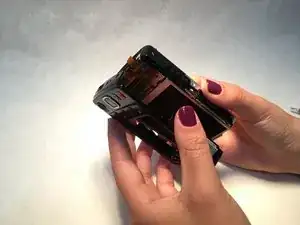

    sa2JtLgTCiNvihMP

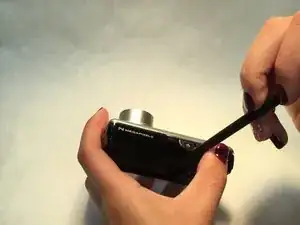

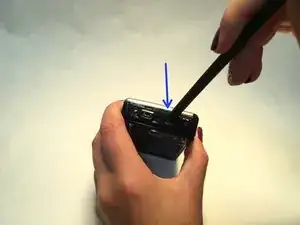

    • Inserting the prying tool as shown, gently separate the front and back pieces of the camera exterior.

  4. lCVaoxTCGbCWRNLW
    lCVaoxTCGbCWRNLW
    er3Y2RVWK4GBHqBA
    MXkAuOpDCsL6EkHl

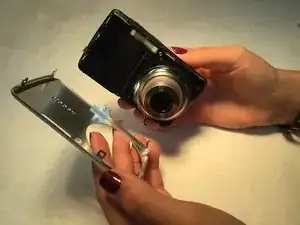

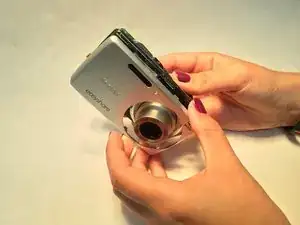

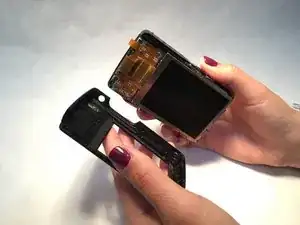

    • Carefully remove the front and back exterior pieces from the camera body.

  5. Jkl5GAIWNdCHFBh4
    Jkl5GAIWNdCHFBh4
    TeupDWYypw21u6yj
    XNAIWNwcrIIbxCTE

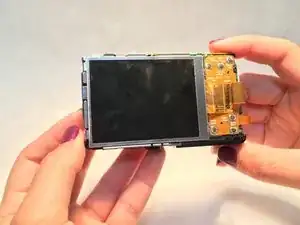

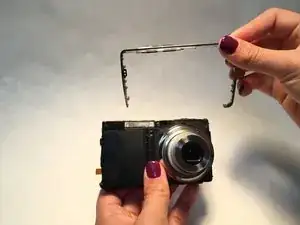

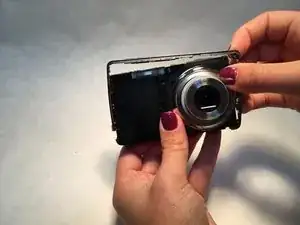

    • Gently remove the frame with the top buttons.

    • You should now have the screen and inside parts exposed as shown.

  6. mEcWRbgFQjvDqyPs
    mEcWRbgFQjvDqyPs
    Fae63HNaGrBCKsXT

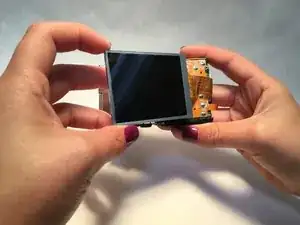

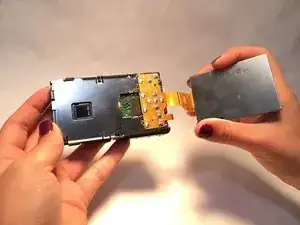

    • Lift the screen off the body. Note that it is still connected on one side by the orange tape.

    • Flip it over gently and let it rest off to the side where the tape is.

    • It is okay if the orange tape clips out of its spot.

  7. Fdj5LSuDgBnuFT13
    Fdj5LSuDgBnuFT13
    aBEecdRIqumyb5kx

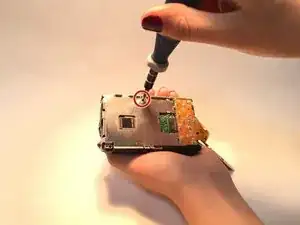

    • Remove the two Phillips screws. There is one at the top center and one in the bottom left corner.

  8. QkXTG2RTF2tGnu4Z
    QkXTG2RTF2tGnu4Z
    qMsDYOtl4TD4opB6
    tBoMTHWWi3uPwQFA

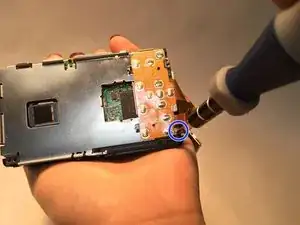

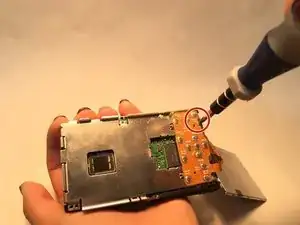

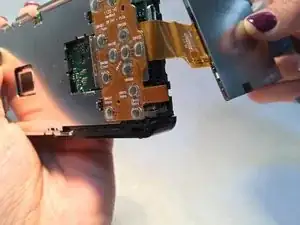

    • Remove the top Phillips screw from the right side.

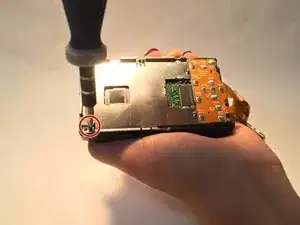

    • Move the silver tape aside to access and remove the Phillips screw in the bottom corner.

  9. IEWxv3xNXniKMgtq
    IEWxv3xNXniKMgtq
    AQQdQZ2UqtUtCabG
    nqLnxCgXkqESPeaq

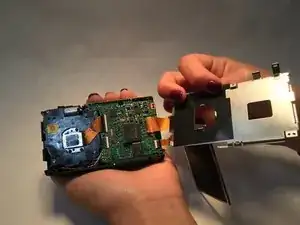

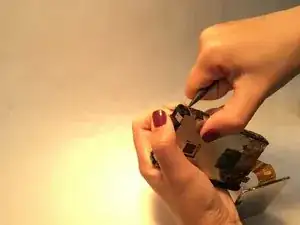

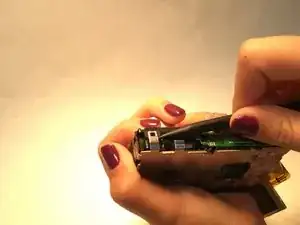

    • Gently pry up the clip on the top corner to release the metal casing and lift the casing out of the way.

    • The casing is also connected via an orange tape on the right side that you may leave in place.

    • Be sure to wear safety glasses while prying the clip.

  10. tsEq5MjGwuGOYWHm
    tsEq5MjGwuGOYWHm
    43QLYCwCMnccwpnC
    vEfpf5XBwjhLGQHG

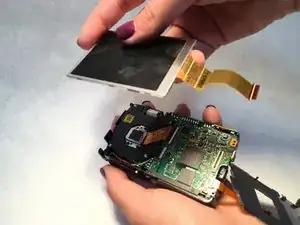

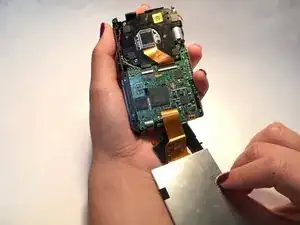

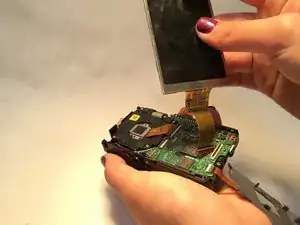

    • Find the silver clip where the orange tape from the screen attaches to the circuit board.

    • Lift up the silver clip. The orange tape will slide out, completely disconnecting the screen from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
