Pentax ZX-5n Shutter Unit Replacement

Step 1

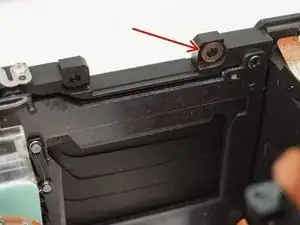

Push down on the screw to depress the spring loaded hinge and release the door.

Step 2

Remove six 5.3 mm #00 screws.
Remove one 3.4 mm #00 screw.
The short screw has a machine thread and screws into the plate underneath. The rest screw into the plastic body.

Step 3

Remove three 5.3 mm #00 screws (the bottom-most screw is not always present).
Remove one 7.3 mm #00 screw.
Remove the remote trigger cover.

Step 4

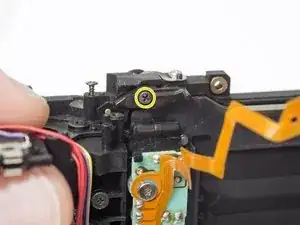

Remove one 3.4 mm #00 screw.
Remove two 5.3 mm #00 screw.
Gently lift up on the flash housing to help remove the cover if necessary.

Step 6

Slide the eye cup up and off to access the screws underneath.

Step 7

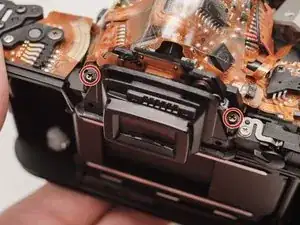

Remove two 5.3 mm #00 screws by the eyepiece.
Remove one 6.8 mm #00 screw in the battery compartment.
Remove one 7.0 mm #00 screw near the take up spool.

Step 8

Lift the cover so it is just free of the body. It is still attached by several wires.

Step 9

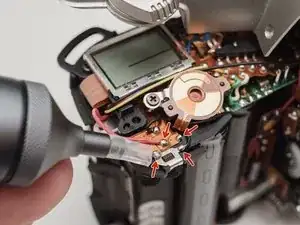

Use a 1kΩ-10kΩ resistor to discharge the capacitor. Place the resistor between the blue wire, exposed in the previous step, and ground.
The flash capacitors store energy at a very high voltage. Failing to discharge the capacitors properly could result in personal injury and/or damage to the camera.

Step 10

Unsolder one green wire.
Unsolder one blue wire.
Unsolder one brown wire.
Unsolder one black wire.

Step 11

Unsolder one black wire.
Pull black wire out from its routed location.
Unsolder flex connector
Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.
Some repairs can be performed with the top cover still connected but the flex connection is fragile and easily damaged.

Step 12

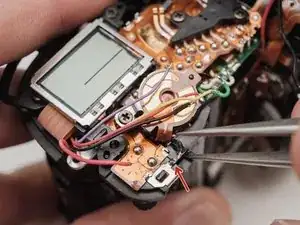

De-solder the indicated joints. Use a solder sucker on the tabbed connections.
Pull the black wire from the battery flex to get more slack in the connection to the top cover.
Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

Step 13

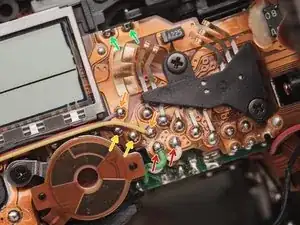

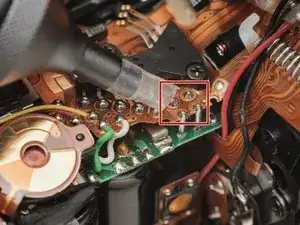

Use a solder sucker to de-solder the four posts from the flex circuit.
This is the most difficult part of the repair. Patience and persistence are required.
Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

A small remark. Having tried to use a "regular good" solder sucker to remove solder, it sucked in the pin connecting the two flexible boards along with the solder. Apparently, I heated the soldering spot too well. The remaining solder was successfully removed with the Goot CP-2015 wick.

Stepan Koloskov -

It is very easy to reflow the solder on the green PCB and knock the pins out of position. They are very conductive. But I haven't sucked one up yet, haha. Solder wick is good solution.

Sam Gustafson -

Step 14

Unsolder film advance motor connections.
Unsolder sprocket counter connections.
Unsolder power and ground connections.
Unsolder panorama switch connections.
Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

Step 15

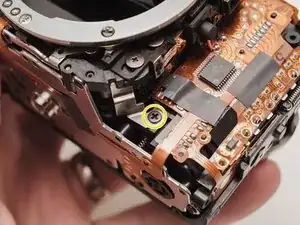

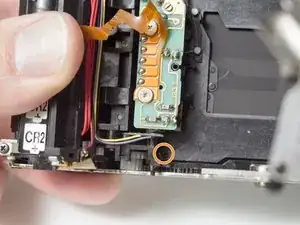

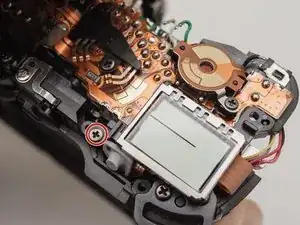

Remove one 4.3 mm #00 screw.

Step 16

Gently pry up the plastic carrier under the flex circuit. It may catch slightly on the battery contact tab.
Pay close attention to the connections around the four through-hole posts as you lift the flex. Make sure that no solder is left over and that it pulls away freely.
This metal tab is lightly held in place with lacquer and can easily come loose. Keep an eye on it.

Step 17

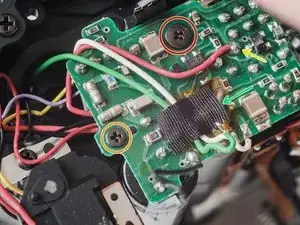

Remove one 3.3mm #00 screw.
Remove one 3.9 #00 screw.
De-solder the red wire.
Peel off the black tape. Leave it attached to the wires.

Step 18

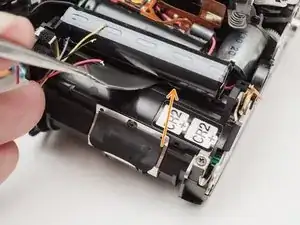

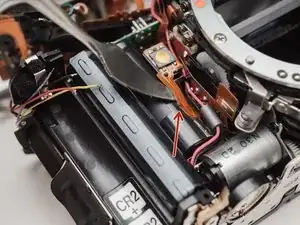

Gently peel the flex circuit from the surface of the capacitor.
There may be additional adhesive underneath the larger capacitor.

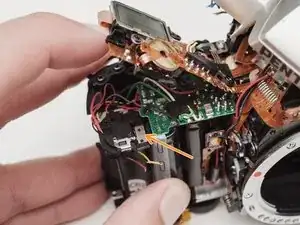

Lift the two capacitors and the flash PCB out as a single unit.
The double sided tape used to secure the capacitors can be softened with isopropyl alcohol if necessary.

Step 19

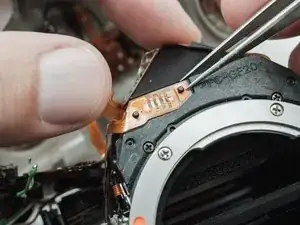

Remove two 3.4 mm #00 screws. Remove the plate holding the contacts in place.
Peel tape from the plate. Leave the tape attached to the flex circuit.
Remove the flex circuits from their retaining studs.

Step 20

Remove one 3.3 mm #0 countersunk screw.
Remove one 3.9 mm #0 shoulder screw.
Remove four 3.3 mm #00 screws.

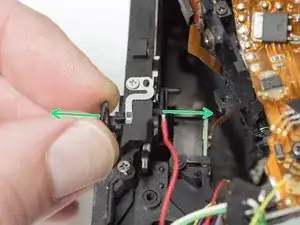

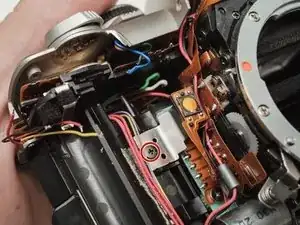

Pull a little slack through the housing on this flex cable.
Pop the plate off its posts, rotate slightly clockwise and pull gently through the loosened flex cable.
To the camera tech that left me a happy little note...I see you.

Step 21

It's best to remove these parts now so they don't fall out later on in the repair.

Step 22

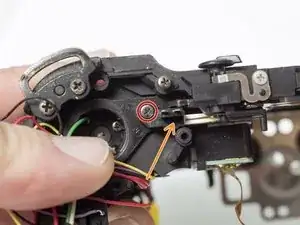

Remove one 3.8 mm #00 screw.

Step 23

De-solder the connections.
Lift the flex off the retaining studs.
Be careful not to overheat the flex circuit. Work in short durations. Allow for cool downs in between if necessary.

Step 24

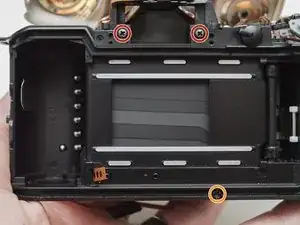

Remove two 5.3 mm #0 screws.

Step 25

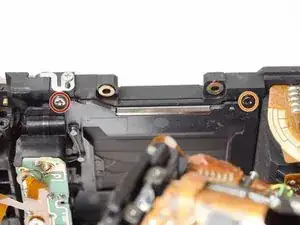

Remove two 7.4 mm #0 screws.
Remove one 8.3 mm #0 screw.
Remove one 3.3 mm #00 screw. The metal bracket will be loose and should be removed as well.

Step 26

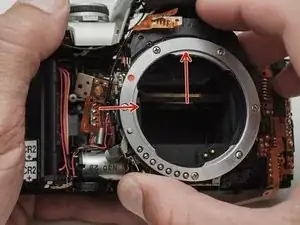

Push the front housing block slightly up then lift the left side up and away from the housing.
Proceed slowly and watch for any components that are catching. The right side is still attached by a large flex cable.
