Roborock S5 Series Sidebrush Motor Replacement

Written By: particleflux
  • Comments: 0
Roborock S5 Series Sidebrush Motor Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

Replace a Roborock S5 side brush motor to fix the small three-pronged brush on the side when it no longer spins.

  1. ElUpaHHeDL5vPtHC
    ElUpaHHeDL5vPtHC
    YLd1kXmCEjLHI4nI

    • Power down your Roborock and place it upside down on a flat work surface.

    • Use a Phillips #2 screwdriver to loosen the captive screw holding the side brush in place.

  2. 1KWMSOlAk2v4QDtB

    • Gently lift the side brush away from the robot vacuum.

  3. EGNKRQ3iph1mp52y

    • Remove the 7 screws holding the bottom lid in place.

    • Lift off the bottom lid.

  4. lHpHb3VIOeV2ksh1
    lHpHb3VIOeV2ksh1
    ugoaa4hoXnupJryX

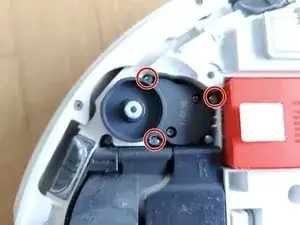

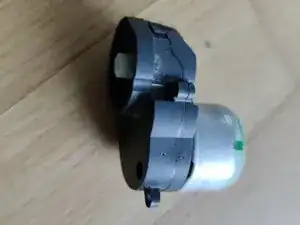

    • Remove the 3 screws holding the gearbox in place and lift it out.

  5. welNA5QXDYAtnlgx
    welNA5QXDYAtnlgx
    k5soFkxpVEAVRgga

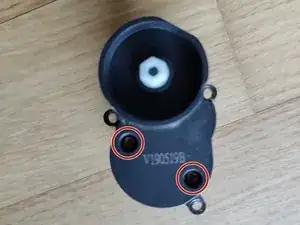

    • Remove the 2 screws of the gearbox.

    • Carefully lift of the lid (try not to break the clip or loose the gears)

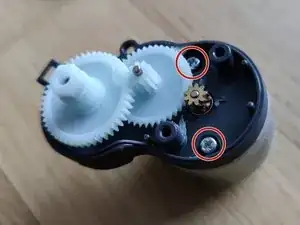

    • Pull the 2 white plastic gear wheels off to the top (potentially inspect those for damage while it's open anyway).

  6. ZG3Hip3hAIDuBlGN
    ZG3Hip3hAIDuBlGN
    xYkySUH1iW6UySwr

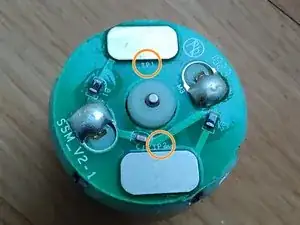

    • Check the orientation on the motor by looking at it from the back. Note the TP1 and TP2 markers on the PCB.

    • Remove 2 screws holding the motor in place.

    • Pull it off to the back.

Conclusion

To reassemble your device, follow these instructions in reverse order.
