Roborock S7 Max Ultra Main Brush Replacement

Written By: Sebastian
  • Comments: 0
Roborock S7 Max Ultra Main Brush Replacement

Difficulty

Very easy

Steps

3

Time Required

1 minute

Introduction

This guide offers step-by-step instructions for removing and replacing the main brush of the Roborock S7 Max Ultra robotic vacuum cleaner. Proper maintenance of the main brush is essential for the best performance of your device.

  1. YJg1AhJO1ww6xw5X
    YJg1AhJO1ww6xw5X
    t2GUZbf1IRWqkYOl

    • Lay the device on its back to access the underside.

  2. FBsZRK3yZVGRXCnC
    FBsZRK3yZVGRXCnC
    JbUMDuR6whvQZFb5

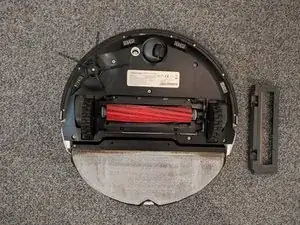

    • Remove the main brush cover by pressing the two small latches and pulling the cover off.

    • When reassembling, ensure the notches on the top side of the frame are properly aligned and seated.

  3. B5xa3HOnJJbCRUiL
    B5xa3HOnJJbCRUiL
    SVCgCCClARdfRDXJ

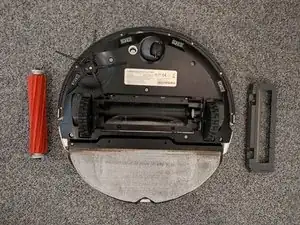

    • Take out the main brush.

    • The main brush is directionally keyed, meaning it only fits one way. The rectangular side must be inserted into the motor side.

Conclusion

To reassemble your device, follow these instructions in reverse order.
