Roborock S7: Cliff sensor replacement

Written By: DegenFixer
  • Comments: 6
Roborock S7: Cliff sensor replacement

Difficulty

Difficult

Steps

16

Time Required

1 - 2 hours

Introduction

Note: This guide requires some knowledge of soldering as well as soldering tools.

A cliff sensor (single, not whole R/L assembly) replacement guide for the robotic vacuum cleaner Roborock S7.

If you already know how to disassemble it or have followed my teardown guide, skip to step 9.

  1. 5GkZrdBJlEOR52JY
    5GkZrdBJlEOR52JY
    r6VkLuJZ6ObYQt5t

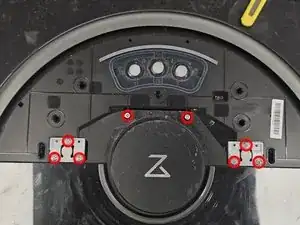

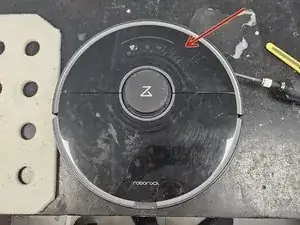

    • Begin by removing the front half of the top cover.

    • It is held on by relatively loose latches. They will come free with some force.

    • Do not bend the plastic cover too much. It has some flexibility, but if bent too much, it could deform or snap.

    • Continue by removing the back half of the top cover.

    • Once removing the screws and the plastic bits, it will just pop out.

  2. TOiBioXDNwWEoZLj
    TOiBioXDNwWEoZLj
    1vteBTGHsrj2e1xx
    6nBrhI3qfBWafFoV

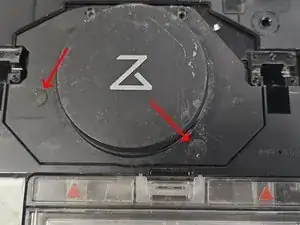

    • Remove the rubber caps covering the 2 screws.

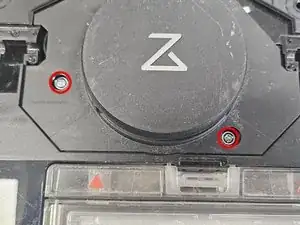

    • Remove the screws.

    • Remove the LiDAR cage.

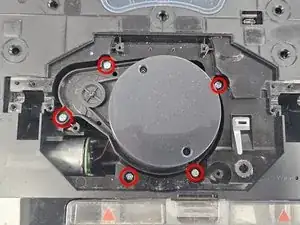

    • Remove the LiDAR screws, then remove the LiDAR.

    • Based on the version of the robot, you might see one of 3 different iterations of the LiDAR. One, that is noticeably smaller, is connected via cable, whereas the other 2 are simply connected by a connector.

  3. cKNIv32LupvppPhe
    cKNIv32LupvppPhe
    6ZW2ZKYs2rJvLXx6
    TeNZKlIeg2NVFAhQ

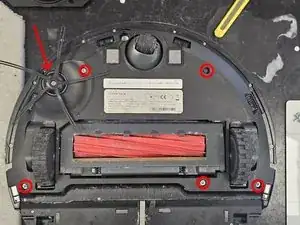

    • Remove the 5 screws and side brush, then remove the bottom panel.

    • Remove the battery. Pull it up and over from left to right, then disconnect the connector.

    • Be careful with the connector. I've had cases where people had torn them off by yanking at the cable instead of pressing on and pulling the connector.

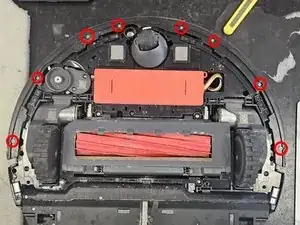

    • Remove the marked screws, then remove the top cover of the bumper, then the bumper itself.

    Be careful of the LED embedded in the bumper (on « Max » version I think). 1cm cable to disconnect from the chassis before removing the bumper !

    Guillaume PELESE -

    Hello!

    The LED cable you're referring to is only present in the S7 MaxV model (the one with the camera).

    I plan on creating a separate teardown of it once I get the time.

    DegenFixer -

  4. ASXb3bvcoiRS2NPp
    ASXb3bvcoiRS2NPp
    CnHNnWb1OZvcyeJR
    pRxmPupBc4f1XiTG

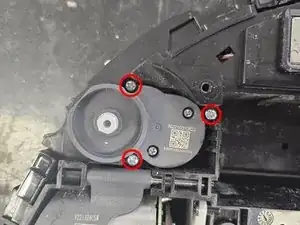

    • Continue by removing the side brush motor.

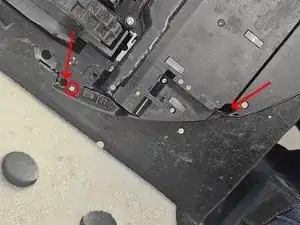

    • Move further below, then remove the screws. The 2 holes marked by arrows have screws within them. The smaller screws are PH1 and the bigger are PH2. After removing the screws, remove the side panel.

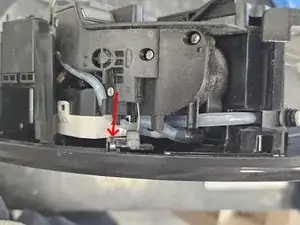

    • Remove the wire from the plastic housing. Angled tweezers recommended.

  5. UZcx2IVKIVFft1vB

    • Shhh, she's sleeping.

  6. Jk2PJAREtwYX4RXf
    Jk2PJAREtwYX4RXf
    XeRFfVjSS5hhY3Wy
    ruYHnyO6amJF6eY6

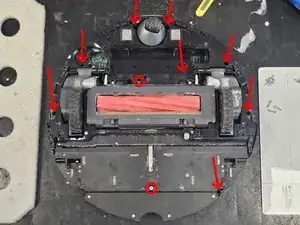

    • Remove the screws marked in image 1.

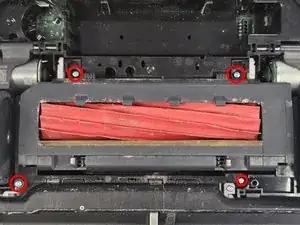

    • Now remove the screws in image 2, then remove the main brush assembly. There is no need to remove the brush cover or the brush itself. You simply pull it out.

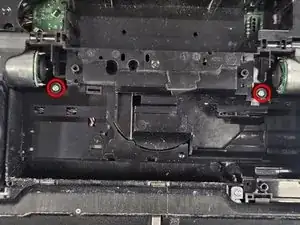

    • Remove the 2 screws hidden by the main brush assembly.

  7. MQNpYbjvHENKm5kr
    MQNpYbjvHENKm5kr
    2AoxMkZ4RjQLVAcb

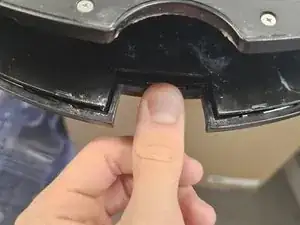

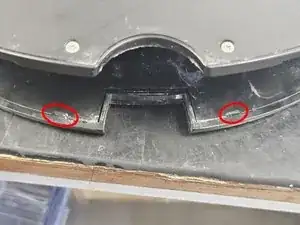

    • Unlatch these 2 latches.

  8. IWDH4XkfbTESVyN3

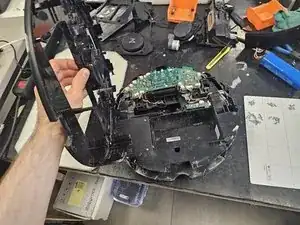

    • And voila, it's open.

  9. r6KZBMw5ZRneIS4S
    r6KZBMw5ZRneIS4S
    EjJIMCO4lndds1iM
    4r6NvT3W11LS2Nvi

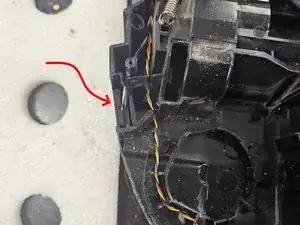

    • Begin by finding out which of your cliff sensors is dead. I don't have a scientific method here, but I start by checking the one that is most commonly faulty.

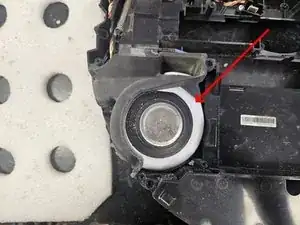

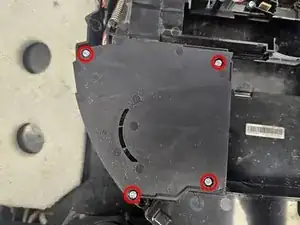

    • It's the cliff sensor that is next to the suction fan. Remove the suction fan cover, then the suction fan itself.

    • The reason this one is usually faulty is: If the suction fan swallows any water at all, some amount will almost certainly land within this cliff sensor, causing damage.

  10. 6dviLnWXsbLppBUF
    6dviLnWXsbLppBUF
    fU1TSNynvoH63Elv
    QjJ6SdWRqUmrwpc4

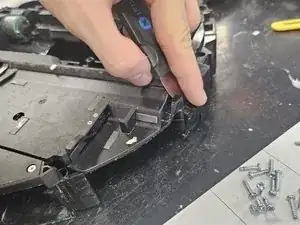

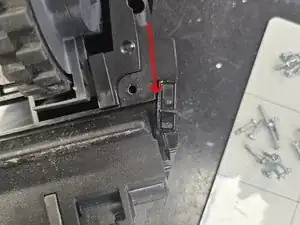

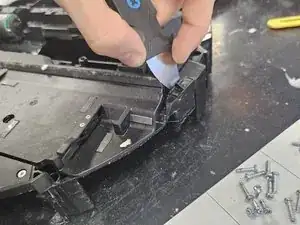

    • Slip something thin in the gap. If you own an iFixit Jimmy, this is where it comes in very handy.

    • You can also use a hammer to tap the cliff sensor out of place, but that risks breaking the plastic housing.

  11. EF5wfwvXIpdDmL4F
    EF5wfwvXIpdDmL4F
    OUfvJwLjSVkCsIRc
    mrCmygUtJWtdP6if

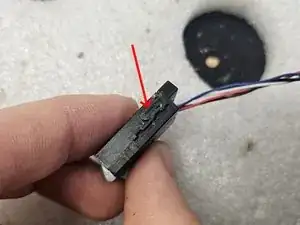

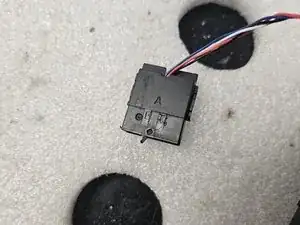

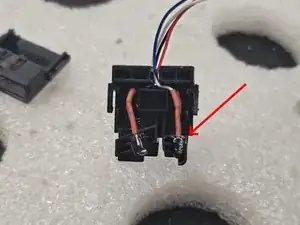

    • Take the cliff sensor apart. It is held together by 2 latches on both sides. Fold those out, then slide the 2 halves apart.

    • In my case, the damage was apparent.

  12. GHu6JxeKgj4tWWWW
    GHu6JxeKgj4tWWWW
    XFmImL34josdSbaN

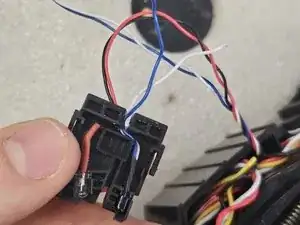

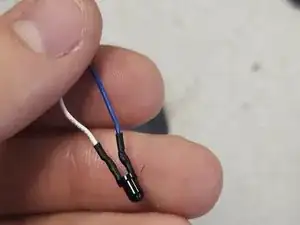

    • Prepare a replacement and fit it into the cliff sensor assembly.

    • Once you have it fitted properly, re-assemble the cliff sensor chassis.

    Hi, what kind of (and where did you get them) diodes did you use for this fix? Thanks!

    Lil Hubb -

  13. A53JnIJdxvisOsSM

    • Why is she sitting like that, though?

  14. DNNPsfouBFGBpSMV
    DNNPsfouBFGBpSMV
    KTqG3XpQmDOktrAp
    xPZCLPj4GDuDHsKs

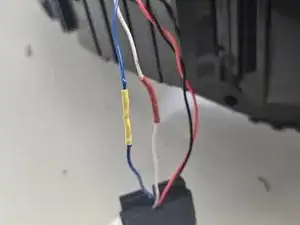

    • Now the fun part: Soldering!

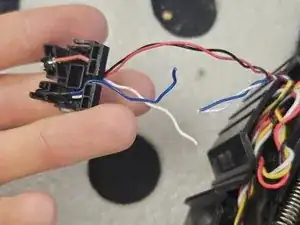

    • Solder the wires together, in my case it was simple. Blue on blue, white on white.

    • I think (but I am not certain, as I am not an electrician) that white is the positive while blue is the negative. Or it might not matter at all. I don't know.

    • This is a pretty low difficulty soldering task.

  15. xVR3OBoXUpkpcIRc

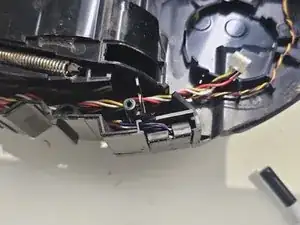

    • Fit the cliff sensor back where it fits, then test the device to see if the error persists.

  16. WmFvpITjDioN2ayO

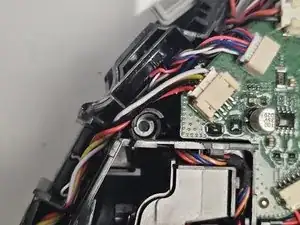

    • When reassembling the device, ensure that no cables cover this (or any other) screw hole.

Conclusion

To reassemble your device, follow instructions from step 8 in reverse order.
