Samsung Galaxy S25 Ultra Chip ID

Published: 18/02/25

Teardown

Introduction

This guide contains a selection of photos and chip identification summary for the Apple Vision Pro headset.

Special thanks to community member CChin for his contribution!

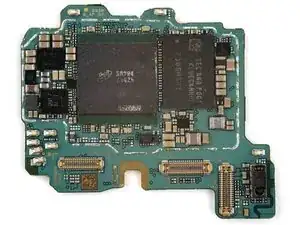

  1. 6I3GDENfOmNemDwt
    6I3GDENfOmNemDwt
    IsYoxO5LRJGi6Lui

    • Qualcomm Snapdragon 8 Elite octa-core applications processor

    • Micron MT62F1536M64D8ZA-020VWT:D 12 GB LPDDR5 SDRAM memory

    • Samsung KLUEG4RHHF-F0G1 256 GB UFS 4.0 NAND flash

    • Analog Devices MAX77775P power management

    • Silicon Mitus SM5443 switched capacitor battery charger

    • Samsung S2MPBA3 power management

    • Texas Instruments audio amplifier

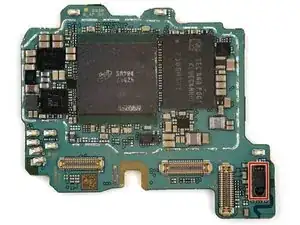

  2. OVTsSJIHKuZuTDCZ

    • Likely AMS-Osram proximity and ambient light sensor

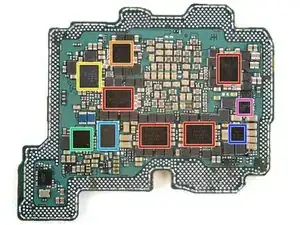

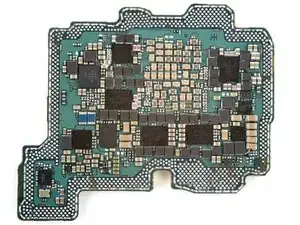

  3. P5hwLAtqZmYYIKqx
    P5hwLAtqZmYYIKqx
    oabKTqaLVD6KEMmv

    • Qualcomm PM8550VE-001 power management

    • Qualcomm PM8550VS-001 power management

    • Qualcomm power management

    • Samsung S2MPB02 power management

    • STMicroelectronics wireless power transmitter/receiver

    • Cirrus Logic CS40L26 haptic driver

    • Texas Instruments audio amplifier

    There seems to be no information on these new audio amplifier chips Samsung have switched to. I wonder if it's responsible for the speaker system improvement?

    djlobb01 -

  4. C1sgXd44xhOSTMYp
    C1sgXd44xhOSTMYp
    IJNly4yAYxYhDdN3

    • Wacom WEZ02 digitizer controller

    • Samsung S2DOS07 display power management

    • Texas Instruments SN86408 DC-DC converter

    • MEMS Microphone

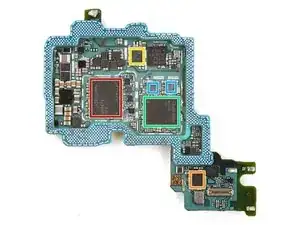

  5. DsmaQAYkrSP6Zryv

    • Qualcomm SDR875-004 RF transceiver

    • Likely NXP Semiconductors SN300 NFC controller w/ secure element

    • Likely NXP Semiconductors SR200D ultra-wideband transceiver

    • Qualcomm WCN7851-101 WiFi 7 & Bluetooth 5.4 controller

    • Qualcomm 5 GHz front-end module

  6. rabOjUGmUneaFM2t

    • STMicroelectronics 6-axis accelerometer & gyroscope

    • Bosch Sensortec pressure sensor

    • Likely AKM Semiconductor magnetometer

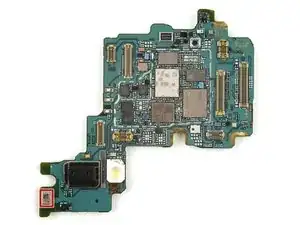

  7. RsIDGRFPCMYSQuMV
    RsIDGRFPCMYSQuMV
    CdByE1yeMOgHXPUu

    • Goertek MEMS microphone

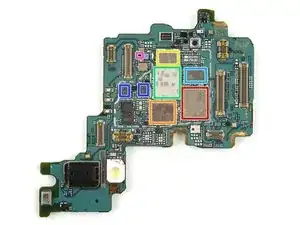

  8. AhZadwLjNCYHdVwV

    • Qualcomm QPM7815A-001 front-end module

    • Skyworks SKY58093-11 low-band front-end module

    • Qualcomm front-end module

    • Murata front-end module

    • Murata front-end module

    • Qualcomm 2.4 GHz front-end module

    • Infineon BGS12P2L6 SPDT RF switch
