Sony Dream Machine ICF-C717PJ Projector Adjustment

Written By: Gurleen Powar
  • Comments: 2
Sony Dream Machine ICF-C717PJ Projector Adjustment

Difficulty

Difficult

Steps

6

Time Required

10 - 15 minutes

Introduction

This guide is intended to help users resolve issues with the projector. Please see the Sony Dream Machine ICF-C717PJ Troubleshooting page: Sony Dream Machine ICF-C717PJ to eliminate other possible issues before you begin. This guide will help assist you in repair the issues impacting the clarity of the projection display.

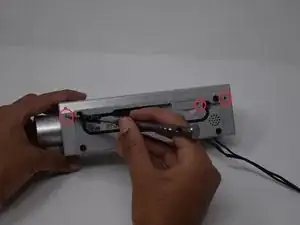

  1. aM33yLwvPOnRNBoq

    • Remove the screw from the backside cover of the recorder with a Phillips Screwdriver.

    Don’t forget the 2 black screws next to the external antenna connector.

    Sandy Bear -

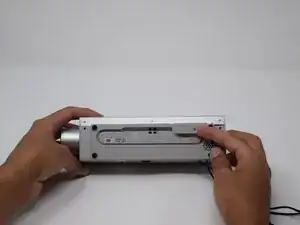

  2. LDtNWDtZVhrJNRIw

    • Remove the battery cover tab.

  3. CbZfKZoiEKKQrryS

    • Remove the backside cover of the device. You can pry open with a screwdriver if necessary.

  4. m2aFmdTvXoIoVBYi
    m2aFmdTvXoIoVBYi

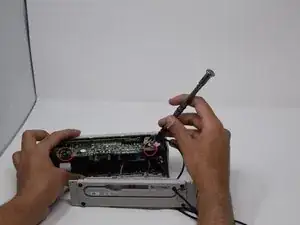

    ZHUkC6QYySE5uOAD

    • Remove screws from motherboard as shown in the photo.

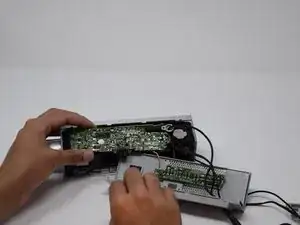

  5. 5MPG6EadKlCpJu4k

    • Pull motherboard out with your hands.

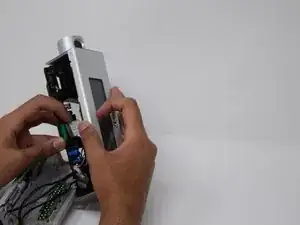

  6. CXToKXkyhRF1UKme

    • Remove the paper tab from its slot and re-insert it.

    So there you got to see the projector. Unfortunately it’s a sealed unit that impossible (?) to replace, or find a spare part.

    Got a good 7 years of use, will find a new projector clock radio.

    Sandy Bear -
