ThinkPad X1 Cover Removal

Written By: Mike
  • Comments: 2
ThinkPad X1 Cover Removal

Difficulty

Easy

Steps

2

Time Required

4 minutes

Introduction

This guide will teach you how to open the cover on a Lenovo X1 Carbon.

  1. 4cQntqABArCHXbuZ

    • Loosen seven cover screws. They will not come all the way out.

  2. tHfFPCvAuceS3fwp

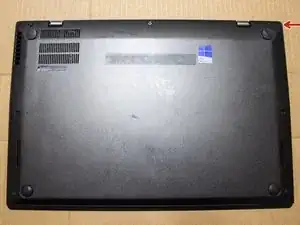

    • Use spudger to pop a corner loose and slide cover off.

    Hello bro please am using Lenovo thinkpad x1 carbon gen 3 some screws feel off from the back cover, am trying to replace the screws, what is the specifications or size of the screw if am to buy it, because i see so many screws online i don't know the type that would match.... The base screw

    Prime -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Mike

Member since: 23/06/16

1906 Reputation

One comment

The screws are M2,5x6, in case they are ruined as mine were, and they have spacers that prevent them falling out when opening bottom cover.
