iRobot Roomba 4210 battery Replacement

Written By: Austin Walter
  • Comments: 0
iRobot Roomba 4210 battery Replacement

Difficulty

Easy

Steps

6

Time Required

40 seconds

Introduction

Replace a damaged or worn out Roomba discovery (4210) battery.

  1. w6UTEA4OakCPnCO6
    w6UTEA4OakCPnCO6
    S6sfZdsTwC2PAaqH

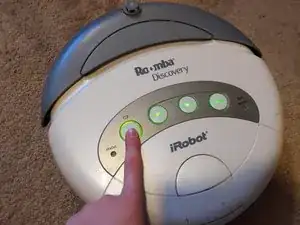

    • Make sure Roomba is powered off.

    • make sure Roomba is unplugged

    • If your battery is bad Powering off Roomba shouldn't be a problem.

  2. NbEFX24aQ2ZusqMD

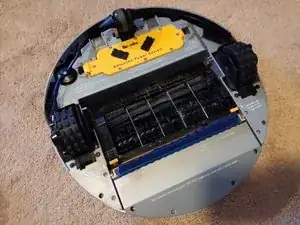

    • Carefully flip Roomba over.

  3. YlPOcwRfDLM1dAAV
    YlPOcwRfDLM1dAAV
    APeGeewayqZcFs3K

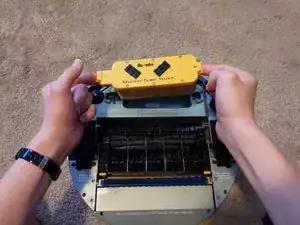

    hh6rHXpkPVwHaXCH

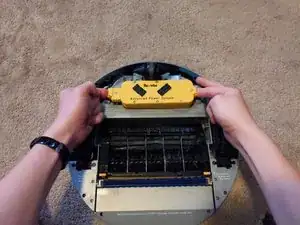

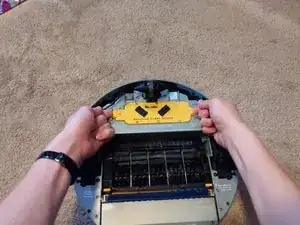

    • Depress side clips and lift up.

    • you may need to use moderate force to remove the battery.

  4. xDVwRLSyhiuW6eAA

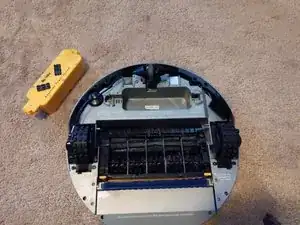

    • The battery is now removed.

    • The battery slot is where the serial number is located

  5. DZp53geEhHKCWBpO
    DZp53geEhHKCWBpO
    SEEKKIZgDAo6VNTe

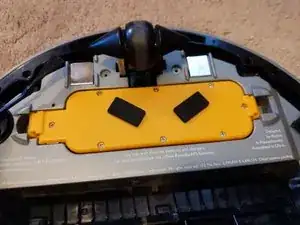

    qoXh4axLhXvFOXYp

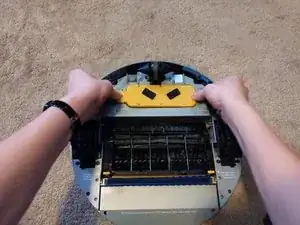

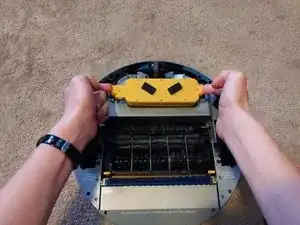

    • Slide new battery Into the slot.

    • make sure that the clips snap into place on BOTH sides.

  6. DdlfNHXLaayJElkA

    • flip over Roomba.

    • Put Roomba on charge for 16 hours then run on MAX cycle to condition the battery.

Conclusion

Remember to condition your battery
