iRobot Roomba 595 Pet Series Battery Replacement

Written By: Adrian Martinez Arbolaez
  • Comments: 3
iRobot Roomba 595 Pet Series Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

This guide is useful for replacing a dead battery or a battery that cannot be recharged through the dock for some reason. This guide is pretty simple can be done in 3 steps, and won't break anything important

  1. eHMGJ3EnvfTNjYiv

    • Flip the Roomba upside down. Using the Phillips #0 screwdriver, carefully remove the 5 mm screw holding the brush in place.

  2. ymA6pGBYckkrlF4u

    • Gently pull the brush up and remove it from the device.

  3. NIyjLgJX4DXvvnvI

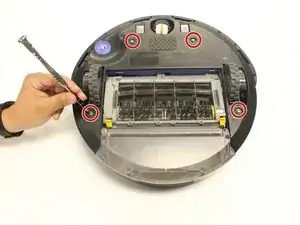

    • Unscrew the four 10mm screws on the underside of the Roomba using a Phillips #1 screwdriver.

  4. QlH5DY6nKk3wcGZf

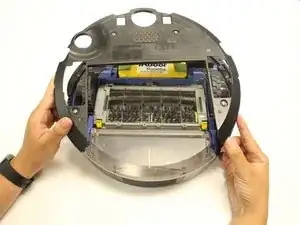

    • Remove the bottom frame of the device.

  5. ZRKoMTAs6NKQChY3

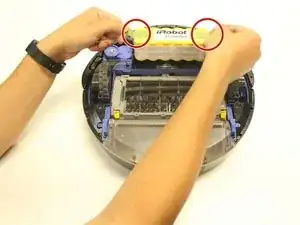

    • Grab the green tape attached to the end of the battery and remove the battery from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
