iRobot Roomba 890 Charging Contacts Replacement

Written By: Devin Steiblin
  • Comments: 0
iRobot Roomba 890 Charging Contacts Replacement

Difficulty

Difficult

Steps

11

Time Required

30 - 50 minutes

Introduction

Is your iRobot Roomba 890 struggling to charge? This guide will walk you through replacing the charging contacts to restore your robotic vacuum's functionality. The charging contacts enable the vacuum to connect with the charging dock for efficient charging. If the contacts are dirty or damaged, replacement may be necessary.

Important: Before starting, turn off the Roomba and unplug it to avoid electrical damage or injury. This repair ensures your Roomba charges efficiently and extends its life. For troubleshooting or additional repair tips, visit our troubleshooting page for more help.

  1. 1ZfUjAiLiMPdKgAq
    1ZfUjAiLiMPdKgAq
    3Uvacu4kqdxrIKWl

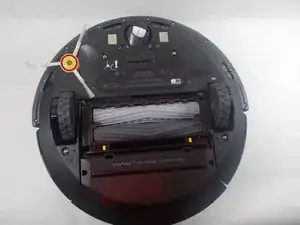

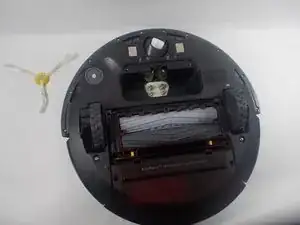

    • Use a Phillips #2 screwdriver to remove the 7.7 mm screw.

    • Remove the yellow brush head.

  2. NS2ocWPcd2vbk1PP

    • Place the Roomba facedown, with its bottom facing you.

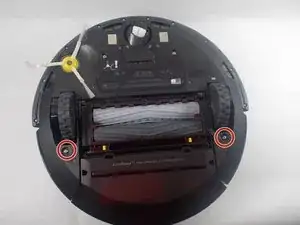

    • Use a Phillips #2 screwdriver to remove the two 11 mm screws.

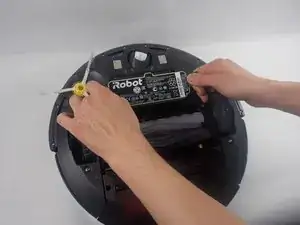

  3. j1hD6cCRsFhtkyrk

    • Remove the battery plate.

    • Remove the battery by pulling directly up on the grey pull tabs.

  4. xtgNBiYNZJDuKyIv
    xtgNBiYNZJDuKyIv
    id3HoRog1XQlRa2C

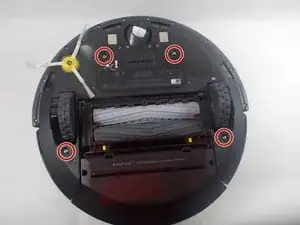

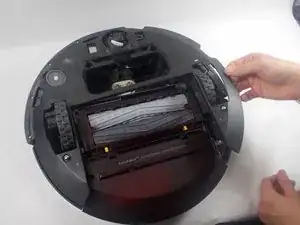

    • Use a Phillips #2 screwdriver to remove the four 11 mm screws.

    • Remove the bottom plate of the Roomba.

  5. A1U3BYSsvCMaRUdt
    A1U3BYSsvCMaRUdt
    f2enMkSRYXdlO6AT

    • Turn Roomba face up.

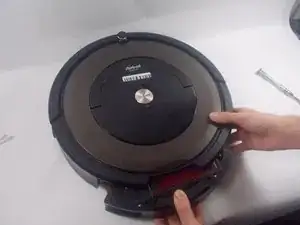

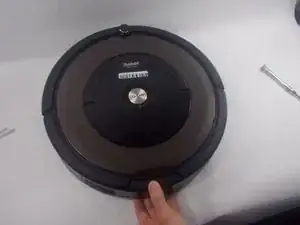

    • Remove the dustbin by pressing the release button on the top side of the Roomba and pulling it straight out.

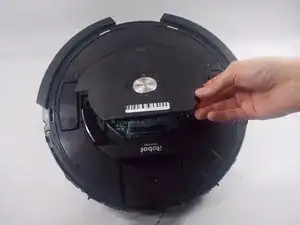

  6. 6jmcBW2JySWBVYMR
    6jmcBW2JySWBVYMR
    tCNsufpJD4rhPrLo

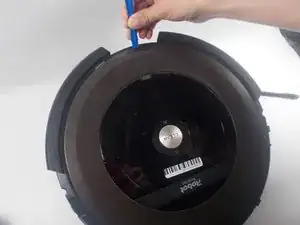

    • Using the opening tool, remove retaining band.

    • Use the removal tool to remove the face plate as well.

    • Pry up slowly around the edges to prevent damage to the plastic components.

  7. 5ypeEPQY5l4oJmsp
    5ypeEPQY5l4oJmsp
    1uAEe2pFdQNqYC6f
    4tATxDJKUSEJrpkm

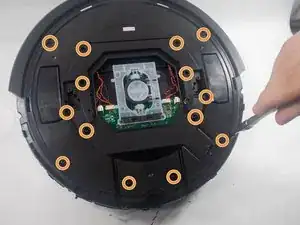

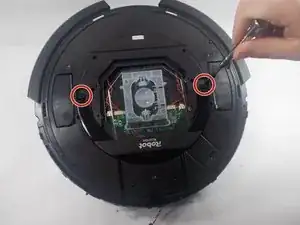

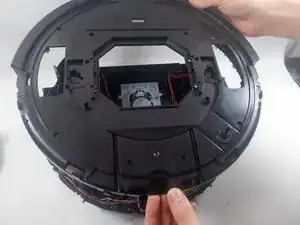

    • Use a Phillips #1 screwdriver to remove the two 9.5 mm handle screws.

    • Use a Phillips #1 screwdriver to remove the fourteen 9.5 mm top plate screws.

    • Lift the top plate off.

  8. SFpEfUuZKXTNqplH
    SFpEfUuZKXTNqplH
    iRPJI2xDooNrDGkA

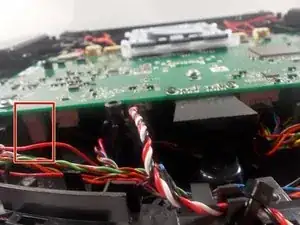

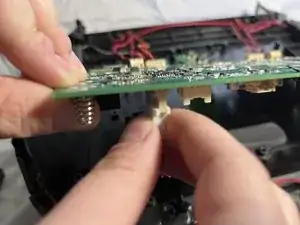

    • Locate the charging contact wire connection to the motherboard.

    • Release the connector.

    • Pull gently on the white plug, not the wires themselves.

  9. 2sbHIJByDMSr4D45

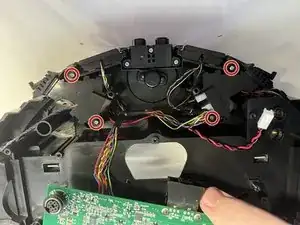

    • Use a Phillips #1 screwdriver to remove the four 9.3 mm bumper sensor screws.

  10. SM1wN1YdSRdRhbkd

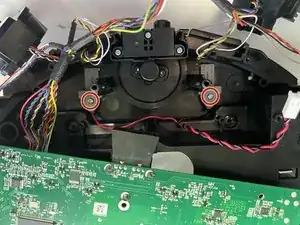

    • Use a Phillips #1 screwdriver to remove the two 9.3 mm screws holding the charging contact backings in place.

    • Remove the charging contact backings.

  11. G2JUM3vIvA4j62Lq

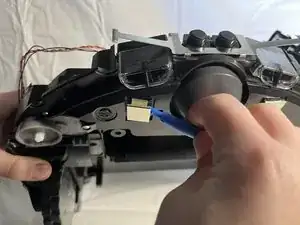

    • Use the iFixit opening tool to gently pry down on the charging contact, on the side closest to the cliff sensor.

    • With the charging contact dislodged, pull it through the Roomba housing.

Conclusion

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
