Roborock Auto-empty Dock (Onyx): Teardown

Written By: DegenFixer
Published: 24/09/24
  • Comments: 0

Roborock Auto-empty Dock (Onyx): Teardown

Published: 24/09/24

Teardown

Introduction

This is a teardown guide for the auto-empty dock, model Onyx3, for Roborock's robotic vacuums.

This guide does not show how to get to the suction fan, and mostly focuses on the motherboard/PSU.

I may update it further in the future.

  1. X4kmNPjoIntijDKl

    • Let's begin by removing its ramp. Flip it on it's head.

    • Use a PH2 screwdriver to unscrew the screws, then take the ramp off.

  2. DJVXbClRmLCAJblf
    DJVXbClRmLCAJblf
    IXpDQT1Vm2Fv5ADp

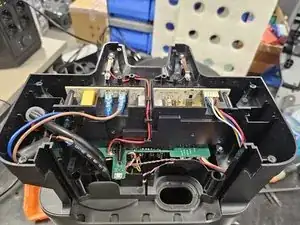

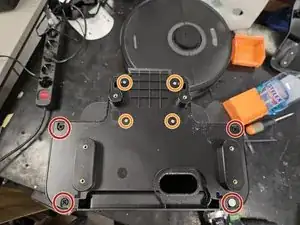

    • Remove the marked screws.

    • Circled in red are PH2.

    • Circled in orange are PH1.

    • Then pull the bottom cover off.

  3. 4IwaBSF1PLfyMkUm
    4IwaBSF1PLfyMkUm
    DIxckuQsEZZSEINT
    YGY1rwQgyl1PloFS

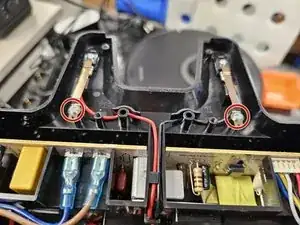

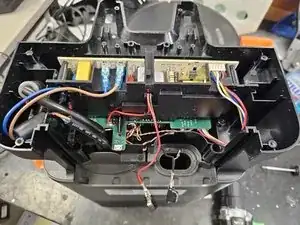

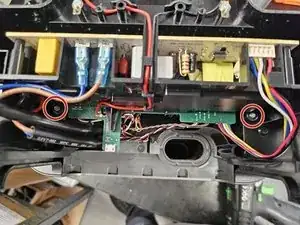

    • Remove the marked screws.

    • All are PH1.

    • Bend the contacts back (img3) to prevent them from shorting the PSU once you pull the assembly out.

  4. k2ZA2BAAhiiAnIEY
    k2ZA2BAAhiiAnIEY
    YB4bBTS1kaBPjlKO

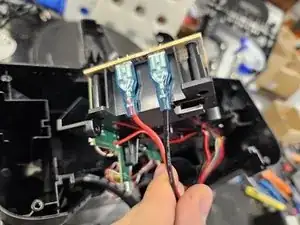

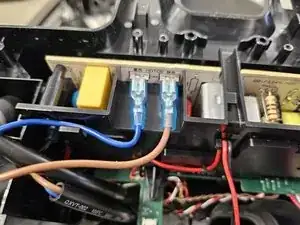

    • Remove the cables.

    • Use these images as reference when reassembling.

  5. djlRT43AoONEExmI
    djlRT43AoONEExmI
    vvYeqKk3rNyLTgkC
    kNDnIDDWVd4FSBBx

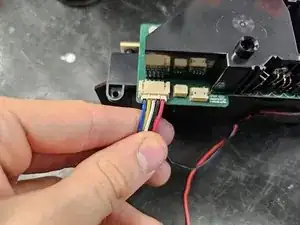

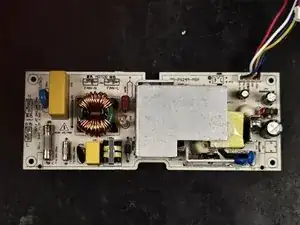

    • Take out the PCBA+PSU assembly.

    • When taking out the assembly, make sure to disconnect the other connectors. I forgot to take pictures of these, so just take it out carefully.

    • Remove the connecting cable between the PSU and the main PBCA.

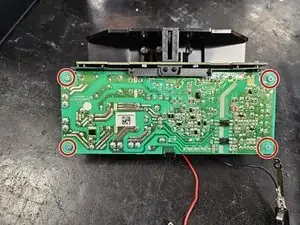

    • Unscrew the PSU.

    • Remove the PSU.

  6. tH2KVT1DQMjZeJsb

    • I caught her.
