On my windows machine, org-indent or visual-line-mode seems to be indenting wrapped lines further than it should. It almost seems like it is double-indenting them, as the extra indentation seems to get bigger with the indentation level the text is at. Strangely enough with the same configuration, I am unable to reproduce the issue on my linux boxes.
Here are screenshots for comparison, same part of the file, only difference is one has variable-pitch-mode, the other doesn't:

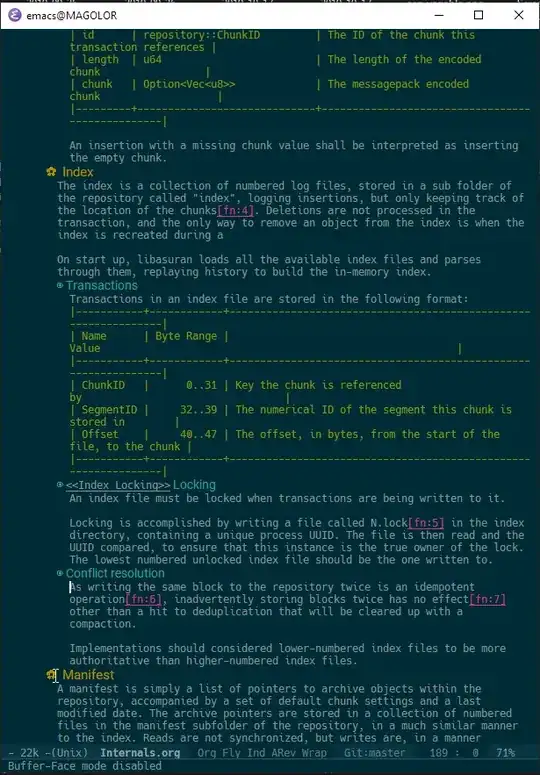

With Variable Pitch:

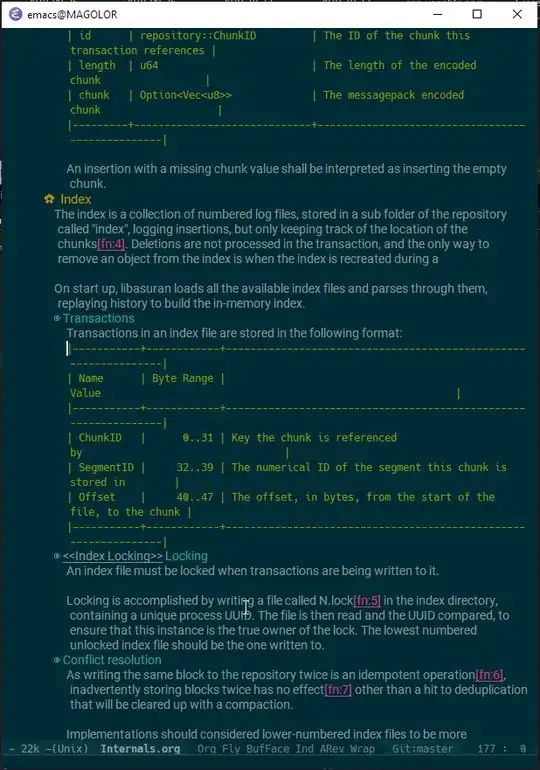

With fixed pitch:
Here is the org-mode section of my init.el:
;;*************************
;; Org Mode
;;*************************
(require 'org)
(global-set-key (kbd "C-c a") 'org-agenda)
(setq-default fill-column 100)
;; (add-hook 'org-mode-hook 'turn-on-auto-fill)
(setq org-directory "c:/Users/nmccarty/Documents/Org")
(setq org-default-notes-file (concat org-directory "/codex.org"))
(setq org-agenda-include-all-todo t)
(setq org-agenda-include-diary t)
(setq org-hide-leading-stars t)
(setq org-odd-levels-only 'nil)
(setq org-todo-keywords
'((sequence "TODO"
"FEEDBACK"
"WORKING"
"PENDING" "|"
"DIFFERED"
"DELEGATED"
"DONE")))
;; Enable FlySpell in org-mode buffers
(add-hook 'org-mode-hook 'flyspell-mode)
;; Cross platform clipboard copying for org-mode
(when (string-equal system-type "windows-nt")
(add-to-list 'exec-path "C:\\Users\\nmccarty\\AppData\\Local\\Programs\\Python\\Python37-32"))
;; Bind the ever-usefil org-insert-subheading
(global-set-key (kbd "H-'") 'org-insert-subheading)
;; Don't include done items in agenda view
(setq org-agenda-skip-timestamp-if-done t)
(setq org-agenda-skip-deadline-if-done t)
(setq org-agenda-skip-scheduled-if-done t)
;; Auto update agenda buffer
(defun org-agenda-redo-other-window ()
"Call Org-Agenda-Redo from another buffer"
(interactive)
(let ((agenda-window (get-buffer-window "*Org Agenda*" t)))
(when agenda-window
(with-selected-window agenda-window (org-agenda-redo)))))
(setq agenda-timer-idle (run-with-idle-timer 15 t 'org-agenda-redo-other-window))
(setq agenda-timer (run-at-time 0 360 'org-agenda-redo-other-window))
;; Hide emphasis marks
(setq org-hide-emphasis-markers t)
;; Pretty lists
(font-lock-add-keywords 'org-mode
'(("^ +\\([*]\\) "
0 (prog1 () (compose-region (match-beginning 1) (match-end 1) "★")))
("^ +\\([-]\\) "
0 (prog1 () (compose-region (match-beginning 1) (match-end 1) "•")))
("^ +\\([+]\\) "
0 (prog1 () (compose-region (match-beginning 1) (match-end 1) "‣")))))
;; Pretty font
(custom-theme-set-faces
'user
'(variable-pitch ((t
(:family "Roboto" :height 105))))
'(fixed-pitch ((t
(:family "Hack" :width normal :height 90)))))
;; Enable visual-line-mode and org-indent-mode
(setq org-startup-indented t)
(add-hook 'org-mode-hook 'variable-pitch-mode)
(add-hook 'org-mode-hook #'visual-line-mode)
(set-face-attribute 'org-table nil :inherit 'fixed-pitch)
(set-face-attribute 'org-hide nil :inherit 'fixed-pitch :height 90)
;; Org mode variable-pitch font
(custom-theme-set-faces
'user
'(org-block ((t (:inherit fixed-pitch))))
'(org-document-info-keyword ((t (:inherit (shadow fixed-pitch)))))
'(org-property-value ((t (:inherit fixed-pitch))) t)
'(org-special-keyword ((t (:inherit (font-lock-comment-face fixed-pitch)))))
'(org-tag ((t (:inherit (shadow fixed-pitch) :weight bold))))
'(org-verbatim ((t (:inherit (shadow fixed-pitch))))))
;; Bind a key for inserting current time
(defun my/timenow ()
(interactive)
(org-time-stamp '(16) t))
(global-set-key (kbd "H-i") 'my/timenow)
;; Setup pandoc
(when (string-equal system-type "windows-nt")
(add-to-list 'exec-path "C:\\Program Files\\Pandoc"))
(use-package ox-pandoc
:ensure t)
;; Count words in trees and subtrees
(use-package org-wc
:ensure t)
(use-package ox-clip
:ensure t)
;; On windows set the diray location
(when (string-equal system-type "windows-nt")
(setq org-agenda-diary-file "C:/Users/nmccarty/Documents/org/diary.org"))
;; Dependency for org-sidebar
(use-package org-ql
:ensure t)
;; Sidebar
(use-package org-sidebar
:ensure t)
;; Show bullets as pretty utf-8 characters
(use-package org-bullets
:ensure t
:diminish
:hook (org-mode . org-bullets-mode))
;; Org-Rifle
(use-package helm-org-rifle
:ensure t
:bind (("H-g" . helm-org-rifle-org-directory)
("H-s" . helm-org-rifle)))
;; Org-chef
(use-package org-chef
:ensure t)
(setq org-capture-templates
'(("c" "Cookbook" entry (file "c:/Users/nmccarty/Documents/Org/cookbook.org")
"%(org-chef-get-recipe-from-url)"
:empty-lines 1)
("m" "Manual Cookbook" entry (file "c:/Users/nmccarty/Documents/Org/cookbook.org")
"* %^{Recipe title: }\n :PROPERTIES:\n :source-url:\n :servings:\n :prep-time:\n :cook-time:\n :ready-in:\n :END:\n** Ingredients\n %?\n** Directions\n\n")))
(global-set-key (kbd "H-o") 'org-capture)
I've tried various incantations and ordering of the font setting and setting org-indent to inherit from org-hide and fixed-point, to no avail.
