Roborock Q5 Pro: Laser Distance Sensor Replacement

Written By: DegenFixer
  • Comments: 0
Roborock Q5 Pro: Laser Distance Sensor Replacement

Difficulty

Moderate

Steps

14

Time Required

45 minutes - 1 hour

Introduction

This guide will show you how to replace the Laser Distance Sensor (LDS or LiDAR) of Roborock's robotic vacuum Q5 Pro.

You may want to do so if your robot reports "Error 1: Laser Distance Sensor blocked."

Within the guide I will also outline how to replace just the motor that spins the LDS, as well as how to clean it properly.

I recommend reading the entire guide before starting the disassembly, then following steps as needed during.

If you already know how to disassemble it or have followed my teardown guide, skip to step 11.

  1. yOGjJrOjVYqCSVAM
    yOGjJrOjVYqCSVAM
    kOIEvYW1GUjPLBSZ
    RYk2RHfisHrGLnds

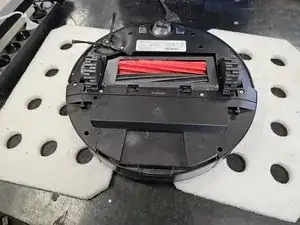

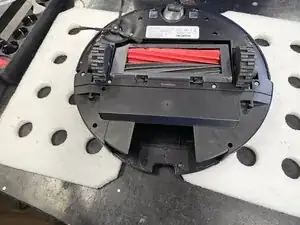

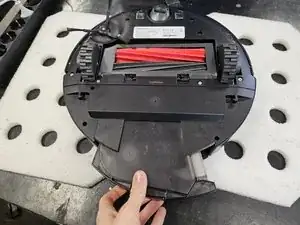

    • Flip it on its head, then remove the dustbin.

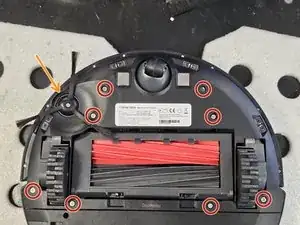

  2. mKNTTwr1PPF6Txnf
    mKNTTwr1PPF6Txnf
    WGLSTjplciBXqpHY

    • Remove the side brush using a PH2 screwdriver.

    • Remove the screws using a PH2 screwdriver.

    • Then, pull the bottom cover off.

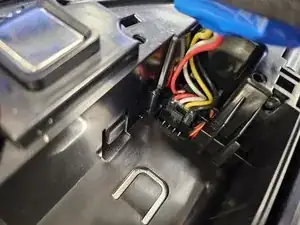

  3. ooMNDbWmYbUhryH4
    ooMNDbWmYbUhryH4
    lgPr4LbSjLIxOCU1
    XpLLbYXkWOafykfE

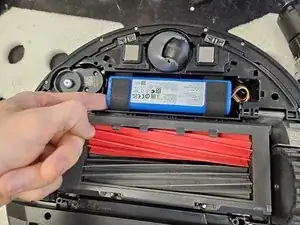

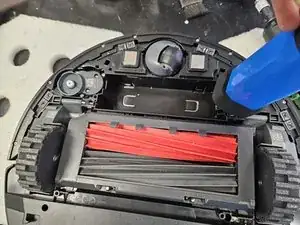

    • Lift it up on the left.

    • Detach the connector by squeezing the release tab, then pull it out.

    • Do not simply yank the battery out. You will tear the connector off the motherboard.

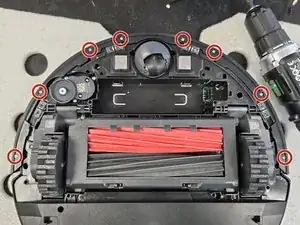

  4. bOEYPvSQlWsFT4NI
    bOEYPvSQlWsFT4NI
    tOPLFkx5DfOPmwZT

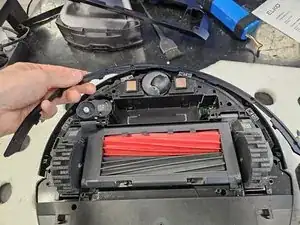

    • Remove the marked screws using a PH1 screwdriver.

    • Then simply lift the lid off.

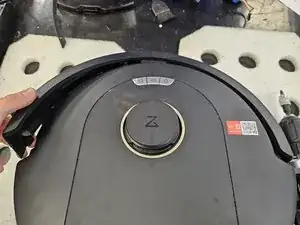

  5. vPWEoWRJQkGqR3BE
    vPWEoWRJQkGqR3BE
    63yAGN2EHGV363v2

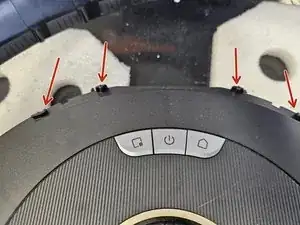

    • Flip the robot over.

    • Tilt the bumper forwards and move it upwards to remove it.

  6. LxTPSQ1tupFAihjk

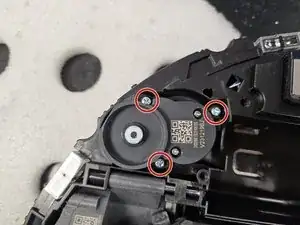

    • Flip it back over.

    • Remove the screws using a PH2 screwdriver.

    • Simply lift it out.

  7. uXdxahkBQTgSYo1v

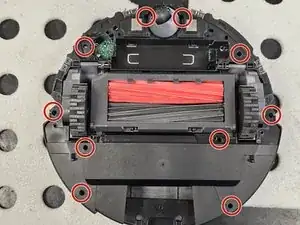

    • Remove the marked screws using a PH2 screwdriver.

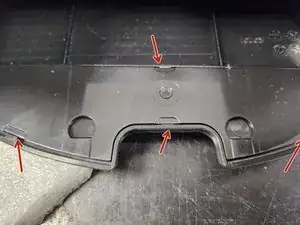

  8. GwnWatj1SDDmFGWT
    GwnWatj1SDDmFGWT
    y1ZOT6dZESxUuYLE
    MYgQX2kutvRkiHMN

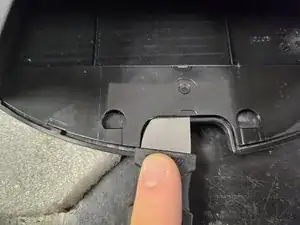

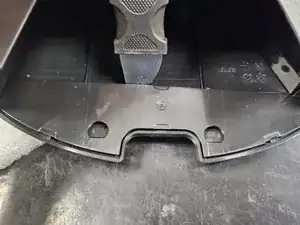

    • The chassis will still be held together by a couple latches on the back.

    • Use a prying tool to get these apart before taking it apart.

  9. qvWDP6MqOVUvhoGB
    qvWDP6MqOVUvhoGB
    WUShuUIT3Qs1McVd

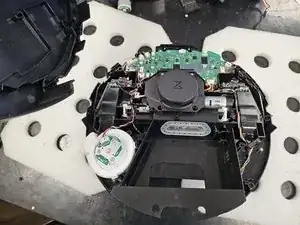

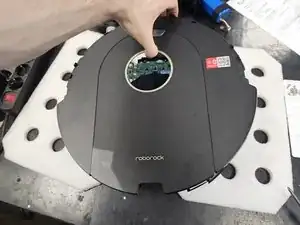

    • Flip it over and simply pull the chassis halves apart.

  10. H5xOa5HwF34Revvc

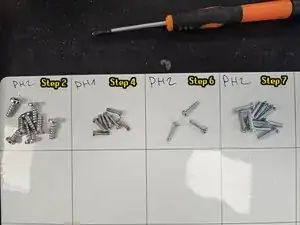

    • Here are the screws organised by steps and type.

    • Use this if needed as a reference during reassembly.

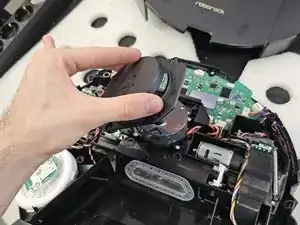

  11. 3C4lmOhoxB2IPVIV
    3C4lmOhoxB2IPVIV
    dpLIxmVZ3QMHdXkK
    NYB63rl4WCsXFKqA

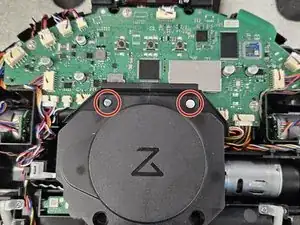

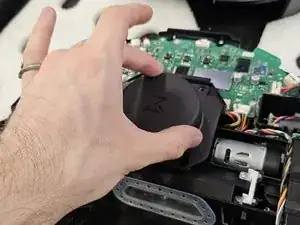

    • Remove the marked screws using a PH2 screwdriver.

    • Then, remove it.

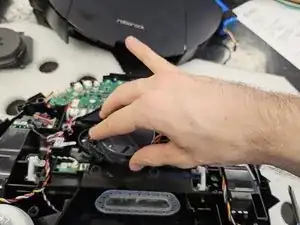

  12. ay5VolOLnqZWWRBf
    ay5VolOLnqZWWRBf
    lJY2CWKUeK2xSE4I
    IQLZFpmUIU3HZgJU

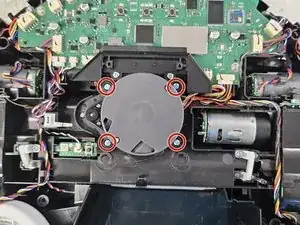

    • Remove the marked screws using a PH2 screwdriver.

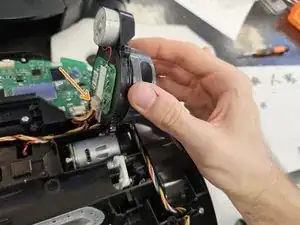

    • Lift the LDS towards the right, then disconnect the connector.

    • If you're replacing the LDS, simply insert the new one and reassemble your device.

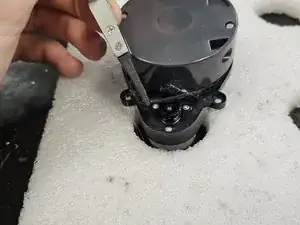

  13. ZbP5HPLVmHjMawMP
    ZbP5HPLVmHjMawMP
    LWCMwxMYNYGsueTu
    IruPlPMYXxBXXPkJ

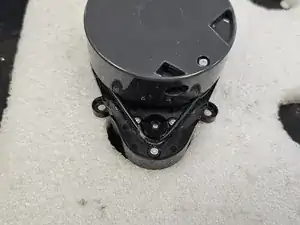

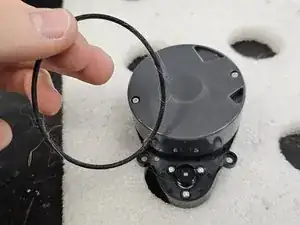

    • Remove the rubber band using some tweezers, forceps or your fingers.

    • Make sure to clean it. This one was quite dirty, which was causing the motor to seize.

    • Your robot may have a different iteration of the LDS, which has a cover over the rubber band section. In that case, please check: Roborock Q Revo: Laser Distance Sensor Replacement and skip to step 12.

  14. mCLNVF3kQlaZ6NFa
    mCLNVF3kQlaZ6NFa
    DuKrFaUVJStCwk36
    W6WeCCwBEeIcBLFJ

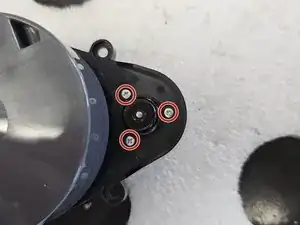

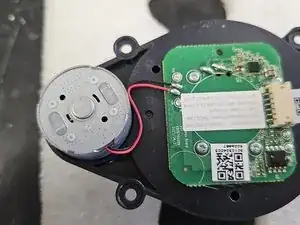

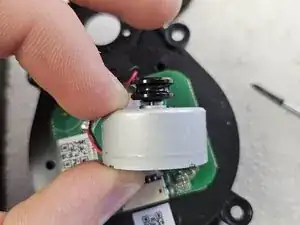

    • Before removing the motor, flip it over and check whether it has a connector or is soldered directly onto the PCBA.

    • Remove the screws.

    • Now you can remove and replace the motor.

    • Your robot may have a different iteration of the LDS, which needs it's driving wheel removed before you can remove the screws. In that case, please check: Roborock Q Revo: Laser Distance Sensor Replacement and skip to step 12.

Conclusion

To reassemble your device, follow these instructions in reverse order.
