How can I use the SE flavor of Markdown in emacs?

Question

I would like to use the SE flavor of markdown in my emacs. The default Markdown mode has some features (backticks and indentation mark code, # makes a header and > also changes the font) but I would also like to have:

• * to make a list item, including indentation.
• [foo](http://example.com) to show up as foo and open a browser to http://example.com when clicked.

Ideally, I would like this to be shown in my emacs as rendered Markdown. For example, if I were to write:

## Header

* item 1
* item 2

         while true; do echo foo; done

End of list and more code

    while true; do echo bar; done

 See [here](http://example.com) for details

I'd like it to be rendered like this in emacs itself:

---

Header

• item 1

• item 2

  while true; do echo foo; done


End of list and more code

while true; do echo bar; done

See here for details

---

Can this be achieved and, if so, how?

Answer 1

**EDIT: ** Since this writing, it seems that part of the features have been directly implemented in markdown-mode. Check out this comment, and the links therein.

---

Configuration

There are two approaches you can take.

1. You can write a command that compiles the markdown code (using a shell command) and displays the html in a buffer.
2. You can make some customizations a-la org-mode to make the buffer look like rendered markdown.

I explain here how to implement number 2. Simply copy all of the code below to you init file.

Add the font-lock rules

This variable controls how you want lists to look. It adds some space to indent the list, and uses a pretty bullet-point (if your font can display it).

(defvar endless/bullet-appearance
  (propertize (if (char-displayable-p ?•) "  •" "  *")
              'face 'markdown-list-face)
  "String to be displayed as the bullet of markdown list items.")

This is the command that actually adds the rules. There is one for lists and one for links.

(require 'rx)
(defvar endless/markdown-link-regexp
    "\\[\\(?1:[^]]+\\)]\\(?:(\\(?2:[^)]+\\))\\|\\[\\(?3:[^]]+\\)]\\)"
  "Regexp matching a markdown link.")

(font-lock-add-keywords
 'markdown-mode
 '(("^ *\\(\\*\\|\\+\\|-\\|\\) "
    1 `(face nil display ,endless/bullet-appearance) prepend)
   (endless/markdown-link-regexp
    1 '(face nil display "") prepend))
 'append)

Make the link editable

Because we’re using the display property to hide part of the link, we need to tell font-lock that it should erase that property whenever you delete part of the link (that way we can still edit it).

(add-hook 'markdown-mode-hook #'endless/markdown-font-lock)

(defun endless/markdown-font-lock ()
  "Configure aggressive font-locking of `markdown-mode'."
  (define-key markdown-mode-map "\C-c\C-l" #'endless/markdown-insert-link)
  (add-to-list (make-local-variable 'font-lock-extra-managed-props) 'display))

We can also define a command to edit it easily, bound to C-c C-l, like in org-mode.

(defun endless/markdown-insert-link ()
  "Insert or edit link at point."
  (interactive)
  (if (or (looking-at endless/markdown-link-regexp)
          (and (ignore-errors (backward-up-list) t)
               (or (looking-at endless/markdown-link-regexp)
                   (and (forward-sexp -1)
                        (looking-at endless/markdown-link-regexp)))))
      (let ((data (endless/ask-for-link
                   (match-string-no-properties 1)
                   (or (match-string-no-properties 2)
                       (match-string-no-properties 3)))))
        (if (match-string-no-properties 2)
            (replace-match (cdr data) :fixedcase :literal nil 2)
          (replace-match (cdr data) :fixedcase :literal nil 3))
        (replace-match (car data) :fixedcase :literal nil 1))
    (let ((data (endless/ask-for-link)))
      (insert "[" (car data) "](" (cdr data) ")"))))

(defun endless/ask-for-link (&optional name link)
  (cons (read-string "Text of the link: " name)
        (read-string "URL of the link: " link)))

(Optional) Configure some faces

That should be enough for the points you requested. If you want your buffer to look even more like SE markdown, call

M-x customize-group RET markdown-faces

and change what you see fit. I did some configuring myself, and here’s what I got.

(custom-set-faces
 '(markdown-header-face-1 ((t (:inherit markdown-header-face :height 2.0))))
 '(markdown-header-face-2 ((t (:inherit markdown-header-face :height 1.7))))
 '(markdown-header-face-3 ((t (:inherit markdown-header-face :height 1.4))))
 '(markdown-header-face-4 ((t (:inherit markdown-header-face :height 1.1))))
 '(markdown-inline-code-face ((t (:inherit font-lock-constant-face :background "gainsboro"))))
 '(markdown-link-face ((t (:inherit link))))
 '(markdown-pre-face ((t (:inherit font-lock-constant-face :background "gainsboro")))))

Results

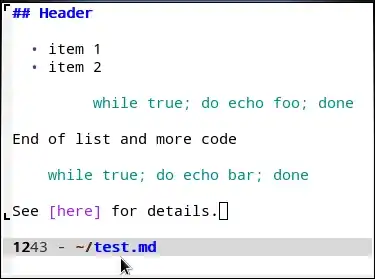

Here’s what you’ll get after the first 2 set of configurations:

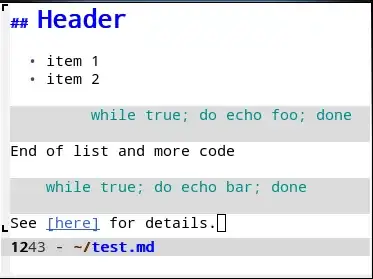

Here’s what you’ll get after configuring faces as well. It’s arguable whether this looks better, I’ll personally stick with the one above.

Answer 2

A good place to start would be markdown-mode.el which can be downloaded from here.

This mode does not offer org-mode style beautification, but it does offer syntax highlighting and a bevy of customize options.

In order to get this style beautification, someone would need to write an extension to markdown-mode.el implementing font-faces.

• Most of org-mode.el's faces are defined in org-faces.el.

• Additionally you will want to take a look at how org-mode visually replaces text with characters. That code is in org-entities.el. This is the code that replaces the latex \pm with ±.
